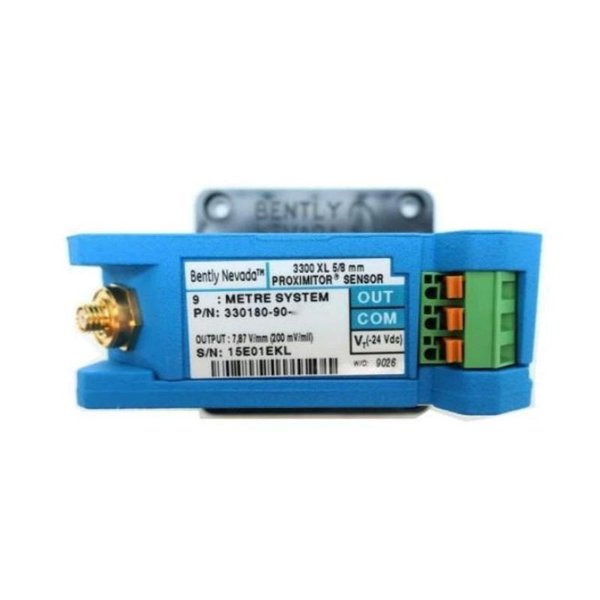

Bently Nevada 330180-90-10 3300 XL Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330180-90-10
Product Type:3300 XL Proximitor Sensor
Origin:USA
Total Length:9.0 meters
Weight:0.246 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330180-90-10 is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise non-contact measurements of shaft vibration and position. It includes a proximity probe, extension cable, and the 3300 XL Proximitor Sensor. This system meets API 670 standards and ensures robust performance in harsh industrial environments.
Key Applications
-
Shaft vibration monitoring on fluid-film bearing machines
-
Rotating machinery position detection
-
Keyphasor® speed and phase reference signals
-
Turbine and compressor health monitoring
-
Overspeed protection systems (with application note guidance)
Product Advantages
-
High Interchangeability: Fully interchangeable components without field matching or calibration
-
Wide Temperature Support: Probe rated up to 218°C, cable up to 260°C
-
Strong EMC Protection: Enhanced RFI/EMI immunity suitable for fiberglass enclosures
-
Easy Installation: SpringLoc terminals and ClickLoc connectors for secure tool-free wiring
-
Robust Build: TipLoc and CableLoc designs provide enhanced mechanical reliability
-
Flexible Mounting: DIN-rail and panel-mount options with identical footprint to previous models
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330180-90-10 |
| System Length | 9.0 meters |
| Total System Weight | 0.7 kg |
| Proximitor Sensor Weight | 0.246 kg |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Output Sensitivity | 7.87 V/mm ± 6.5% |
| Deviation from Straight Line | ±0.038 mm (±1.5 mils) |
| Temperature Range – Probe | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Temperature Range – Cable | -52°C to +260°C |
| Temperature Range – Sensor | Operating: -52°C to +100°C |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm) |
| Minimum Target Size | 15.2 mm diameter |
| Connector Torque | 0.565 N·m (5 in·lbf) max |
| Cable Bend Radius | 25.4 mm (1 in) minimum |
| Output Resistance | 50 Ω |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel (AISI 303 or 304) |
| Cable Type | 75Ω triaxial with FEP or PFA insulation |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330180-90-10 sensor?
A1: It measures shaft vibration and position in rotating equipment.
Q2: Is it compatible with previous 3300 series systems?
A2: Yes, it’s backward compatible with 3300 5 mm and 8 mm components.
Q3: Can this sensor be used in hazardous environments?
A3: Yes, it has ATEX, CSA, and IECEx approvals for hazardous area use.
Q4: What is the advantage of using ClickLoc connectors?
A4: They provide secure, tool-free connections with corrosion-resistant gold plating.
Q5: What is the effect of long field wiring on signal quality?
A5: It can cause signal roll-off at high frequencies; keep within 305 meters.
Q6: Can I use this sensor for overspeed protection?
A6: Yes, but follow Bently Nevada’s specific application notes for proper setup.
Q7: Does the sensor require calibration?
A7: No, all components are factory calibrated and interchangeable.
Q8: What materials can it be calibrated for besides AISI 4140?
A8: It can be specially calibrated for other conductive materials upon request.
Q9: What kind of installation options are available?
A9: Supports both DIN-rail and traditional panel-mount installations.
Q10: What is the expected service life of this sensor system?
A10: With proper installation, it offers long-term durability even in harsh conditions.
