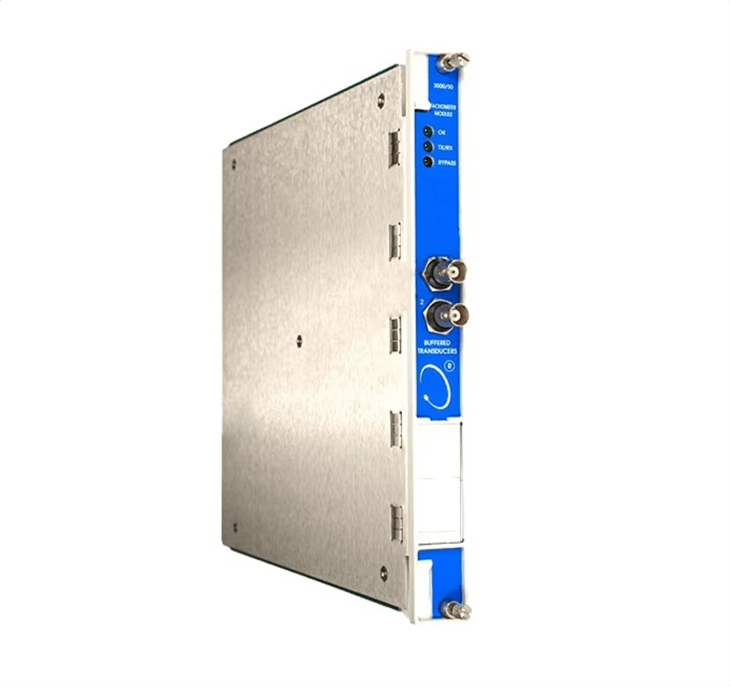

Bently Nevada 3500/50-01-00-01 288062-02 Tachometer Module
Item Number:3500/50-01-00-01 288062-02
Brand:Bently Nevada
Lead Time: In stock
Description:Tachometer Module
Payment: T/T
Product Description
Bently Nevada 3500/50-01-00-01 288062-02 Tachometer Module is a dual-channel module that receives input signals from a proximity probe or magnetic sensor to determine shaft speed, rotor acceleration, or rotor direction. The module compares these measurements to user-programmable alarm settings and generates an alarm signal if the set value is exceeded.
It can accurately measure speed and receive input signals from a proximity probe or magnetic sensor to determine shaft speed; it can monitor and calculate rotor acceleration to provide more data support for evaluating equipment operating status; it has the function of determining the direction of rotor rotation and can accurately identify forward and reverse rotation; it can also be configured to provide conditioned key phaser signals to the 3500 rack backplane for use by other monitoring modules without additional configuration.
Function & Features
- Speed Measurement: The 288062-02 Tachometer Module receives input signals from a proximity probe or magnetic sensor to determine shaft speed.
- Acceleration Measurement: The 288062-02 Tachometer Module monitors and calculates rotor acceleration.
- Direction Determination: The 288062-02 Tachometer Module determines the direction of rotor rotation and can distinguish between forward and reverse rotation.
- Signal Supply: The 288062-02 Tachometer Module can be configured to provide a conditioned keyphase signal to the 3500 rack backplane for use by other monitoring modules, eliminating the need for a separate keyphase module in the rack.
Specifications
| Category | Details |
|---|---|
| Series | Bently Nevada 3500/50 |
| Module | 288062-02 |
| Inputs | |
| Signal Input | Each module accepts up to two transducer signals from proximity probes or magnetic pickups. |
| Input Signal Range | +10.0 V to -24.0 V. Signals exceeding this range are internally limited by the module. |
| Input Impedance |
- Standard: 20 kΩ
- TMR (Triple Modular Redundancy): 40 kΩ - Internal Barrier: 7.15 kΩ |
| Power Consumption | Typical: 5.8 Watts |
| Transducers | Accepts 1 to 2 proximity transducer signals. Restrictions may apply to magnetic pickups (see Warning on page 2). |
| Outputs | |
| Front Panel LEDs | |
| - OK LED | Indicates when the module is operating properly. |
| - TX/RX LED | Indicates when the module is communicating with other modules in the 3500 rack. |
| - Bypass LED | Indicates when the module is in Bypass Mode. |
FAQ
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A:Tachometer Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
