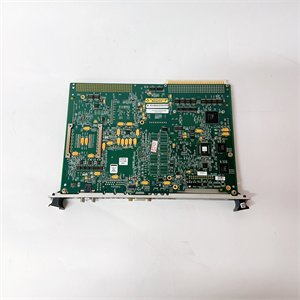

General Electric VMIVME-7452-5040 VMEbus Analog Input Module

The GE VMIVME-7452-5040 is a rugged, high-precision VMEbus analog input module engineered for critical sensor data acquisition in industrial and aerospace applications. As a core component of GE’s VMEbus ecosystem, the GE VMIVME-7452-5040 excels at converting continuous analog signals (from temperature, pressure, flow, or vibration sensors) into digital data for processing by VMEbus single-board computers (SBCs) like the GE VMIVME-7807-412010.

Designed for legacy system compatibility and modern performance, the GE VMIVME-7452-5040 features 16 software-configurable differential channels—each supporting multiple signal ranges (e.g., ±10V for pressure transducers, ±20mA for flow meters)—eliminating the need for external signal converters. In automation systems, it acts as the “sensory interface”: it captures high-fidelity sensor data at up to 100 kSPS, filters out electrical noise, and transmits reliable digital data to the VMEbus SBC for real-time control or analysis. The GE VMIVME-7452-5040 is particularly valued in industries with long equipment lifecycles (e.g., nuclear power, defense), where replacing entire VME-based systems is cost-prohibitive.

Detailed Parameter Table

Core Advantages and Technical Highlights

16-Channel Flexibility with Per-Channel Configuration: The GE VMIVME-7452-5040’s 16 differential channels are independently configurable via software (no hardware jumpers), allowing mixed signal types on the same module. For example, in a gas turbine test rig, 8 channels can monitor ±10V vibration sensor data, while 4 channels track 0–5V temperature signals and 4 channels measure ±20mA fuel flow—all without rewiring. This flexibility reduces module count by 50% compared to fixed-range analog input cards, saving rack space and lowering costs.

High Accuracy and Simultaneous Sampling: Equipped with 16-bit ADCs and simultaneous sampling, the GE VMIVME-7452-5040 ensures all 16 channels capture data at the exact same moment—critical for applications requiring time-aligned measurements (e.g., power plant transformer monitoring, where voltage and current signals must be synchronized). Its ±0.01% full-scale accuracy (at 25°C) maintains precision across industrial temperature ranges, while built-in linearization and noise filtering minimize errors from EMI (electromagnetic interference) common in factory or turbine environments. For a wind turbine control system, this accuracy ensures wind speed and blade angle data are reliable, optimizing energy output by up to 8%.

Legacy VMEbus Compatibility with Modern Expandability: The GE VMIVME-7452-5040 integrates seamlessly with GE’s VMEbus ecosystem, including the GE VMIVME-7807-412010 SBC and GE VMIVME-2210 communication module. It supports VME64 extensions for high-speed data transfer (132MB/s), ensuring digital data reaches the SBC with <1ms latency—fast enough for closed-loop control. For customers upgrading to GE Mark VIe, the GE VMIVME-7452-5040 connects via the GE VMIVME-2210 (Ethernet gateway), preserving existing sensor investments while enabling cloud-based monitoring via GE Predix.

Typical Application Scenarios

In nuclear power plant auxiliary systems, the GE VMIVME-7452-5040 monitors 16 critical analog signals in a containment cooling loop: 8 channels track ±10V pressure transducer data (coolant pressure), 4 channels measure 0–10V temperature signals (heat exchanger output), and 4 channels capture ±20mA flow meter data (coolant flow rate). The module’s simultaneous sampling ensures pressure and flow data are time-aligned, allowing the GE VMIVME-7807-412010 SBC to detect anomalies like “high pressure + low flow” (indicating a blockage) within 50ms. Its SIL 2 compliance meets nuclear regulatory standards (e.g., 10 CFR Part 50), ensuring data integrity for safety-instrumented systems.

In aerospace engine testing, the GE VMIVME-7452-5040 is part of a test cell data acquisition system, collecting 16 channels of engine performance data: ±5V vibration sensor signals (turbine shaft), 0–5V fuel pressure data, and ±20mA oil flow measurements. With a 100 kSPS total sampling rate, it captures transient events (e.g., engine startup spikes) without data loss. The module transmits digital data to the GE VMIVME-7807-412010 SBC, which logs results to a CompactFlash card and sends real-time metrics to a test control HMI via the GE VMIVME-2210. This setup reduces test data error rates by 15% compared to older analog modules, accelerating engine certification timelines.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Before installing the GE VMIVME-7452-5040, power off the VMEbus chassis (e.g., GE VMIVME-7800) and use lockout/tagout procedures to ensure safety. Required tools include a torque screwdriver (0.5 N·m for chassis screws), ESD-safe gloves, a multimeter, and a laptop with GE VMICFG-7452 software. Verify the ambient temperature is 0°C–60°C and humidity is 5%–95% (non-condensing). Align the module with the chassis guide rails, ensuring the VMEbus connector (J1/J2) is properly seated—do not force the module, as this may damage backplane pins. Use shielded twisted-pair cables for field wiring to minimize EMI interference with analog signals.

Maintenance Suggestions: For daily maintenance, check the GE VMIVME-7452-5040’s LED indicators (green = normal, red = fault) via the chassis front panel. Use GE VMICFG-7452 software weekly to verify channel accuracy (calibrate against a NIST-traceable signal generator if deviations exceed ±0.02%). Every 6 months, power down the chassis and inspect the terminal block for loose wiring or corrosion—clean with a dry lint-free cloth if needed. If a channel fault occurs (e.g., no data received), first check the field sensor and wiring; if the issue persists, use the software’s diagnostic tool to isolate the channel. Replace the GE VMIVME-7452-5040 with a GE-approved spare only if hardware failure is confirmed—third-party parts may compromise accuracy or safety compliance.
