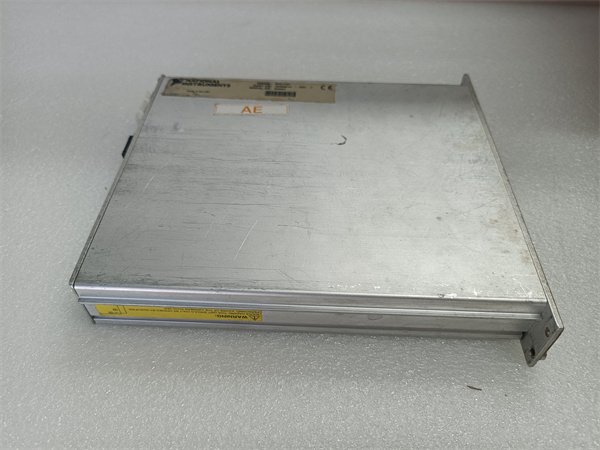

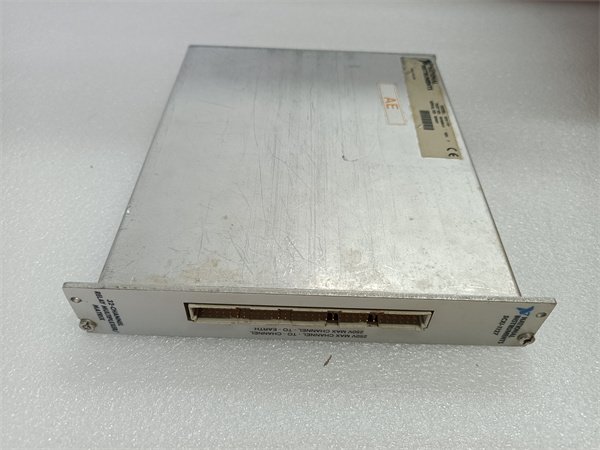

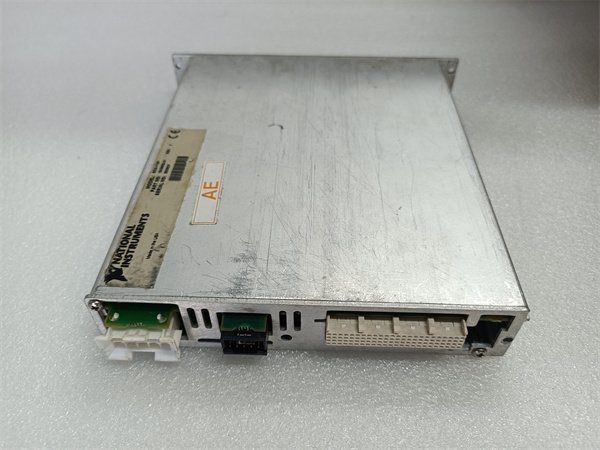

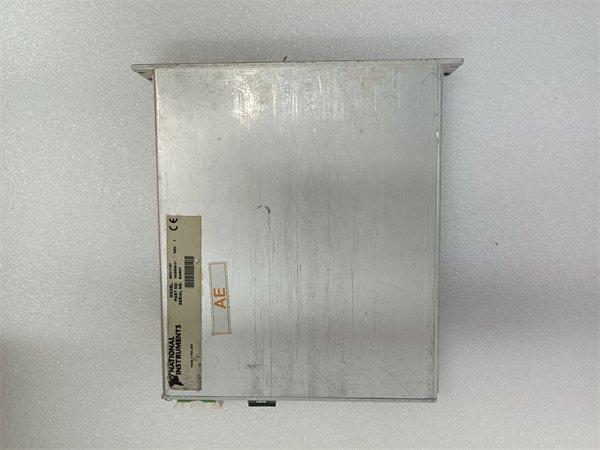

NI SCXI-1127 8-Channel Isolated Analog Input Module

The NI SCXI-1127 is a high-performance 8-channel isolated analog input module designed for SCXI (Signal Conditioning eXtensions for Instrumentation) systems, delivering precise signal conditioning for sensitive measurements in noisy industrial environments. As part of NI’s SCXI family, it excels at amplifying, isolating, and filtering low-level signals from sensors and transducers, ensuring accurate data acquisition in challenging conditions.

Ideal for applications requiring galvanic isolation between channels and the measurement system, the NI SCXI-1127 supports both differential (8 channels) and single-ended (16 channels) configurations, adapting to diverse sensor types. Its 16-bit resolution and selectable input ranges (from ±50 mV to ±10 V) make it suitable for measuring signals from strain gauges, thermocouples, pressure transducers, and other low-level sensors. In data acquisition systems, the NI SCXI-1127 acts as a critical interface between field sensors and DAQ modules, enhancing measurement integrity by mitigating noise, ground loops, and voltage transients.

Detailed Parameter Table

Core Advantages and Technical Highlights

Robust Isolation for Noisy Environments: With 250 Vrms isolation between channels and ground, the NI SCXI-1127 eliminates ground loop interference—a common issue in industrial settings with multiple grounded devices. This isolation protects sensitive DAQ equipment from voltage spikes and ensures measurement accuracy in environments with heavy machinery or power electronics.

Flexible Signal Conditioning: The module offers 8 selectable input ranges, from ±50 mV to ±10 V, enabling direct connection to a wide range of sensors without external amplifiers. Its 10 GΩ input impedance minimizes loading effects on signal sources, preserving signal integrity for low-current sensors like piezoelectric transducers.

High-Resolution Measurements: 16-bit resolution and a 100 dB common-mode rejection ratio (CMRR) allow the NI SCXI-1127 to detect subtle signal variations, such as microstrain in structural materials or millivolt-level temperature fluctuations. This precision is critical for research and quality control applications where small signal changes indicate performance or safety issues.

Seamless System Integration: Designed for compatibility with SCXI chassis (e.g., SCXI-1000) and DAQ modules (e.g., PXI-6224), the NI SCXI-1127 integrates smoothly into NI’s modular measurement systems. It works with NI-DAQmx software, enabling easy configuration and synchronization with other system components for multi-channel data acquisition.

Typical Application Scenarios

Industrial Process Control: In chemical plants, the NI SCXI-1127 monitors pressure, temperature, and flow rate via transducers, providing isolated measurements to prevent ground loops between the process control system and sensor wiring. Its wide input ranges accommodate both low-level thermocouple signals (mV) and higher-voltage pressure transmitters (V).

Structural Health Monitoring: For bridges and buildings, the module connects to strain gauges and accelerometers, measuring minute structural vibrations and stress. Its high resolution captures microstrain variations that indicate fatigue or damage, while isolation protects the measurement system from electrical noise in urban environments.

Power Distribution Monitoring: In electrical substations, the NI SCXI-1127 measures current transformer (CT) and voltage transformer (VT) outputs, monitoring power quality and detecting faults. Isolation prevents high-voltage transients from reaching the DAQ system, ensuring operator safety and equipment protection.

Automotive Test Cells: During vehicle durability testing, the module acquires data from sensors monitoring engine vibration, brake pressure, and suspension stress. Its ability to handle both differential and single-ended signals simplifies integration with diverse sensor types, while isolation eliminates noise from the vehicle’s electrical system.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Before installing the NI SCXI-1127, power off the SCXI chassis and use an anti-static wristband. Verify the chassis is compatible (e.g., SCXI-1000) and has an available slot. Inspect the module’s connectors for damage, and ensure the terminal block (e.g., SCXI-1349) is properly rated for the application’s voltage and current.

Commissioning Steps: Insert the NI SCXI-1127 into the SCXI chassis, securing it with front-panel screws. Connect the terminal block using a 68-pin VHDCI cable. Power on the chassis and launch NI MAX to detect the module. Configure channel settings (range, single-ended/differential) via software, then perform a calibration using a precision signal generator to verify accuracy. Test with a known sensor signal to confirm proper conditioning and isolation.

Maintenance Suggestions: Inspect the NI SCXI-1127 quarterly for loose connections or dust accumulation on cooling vents. Clean connectors with compressed air to prevent signal degradation. Verify isolation integrity annually using a megohmmeter to ensure channel-to-ground resistance remains above 1 GΩ. If measurement drift occurs, recalibrate the module using NI’s calibration software. Store the module in a dry environment within -40 °C to 70 °C when not in use.
