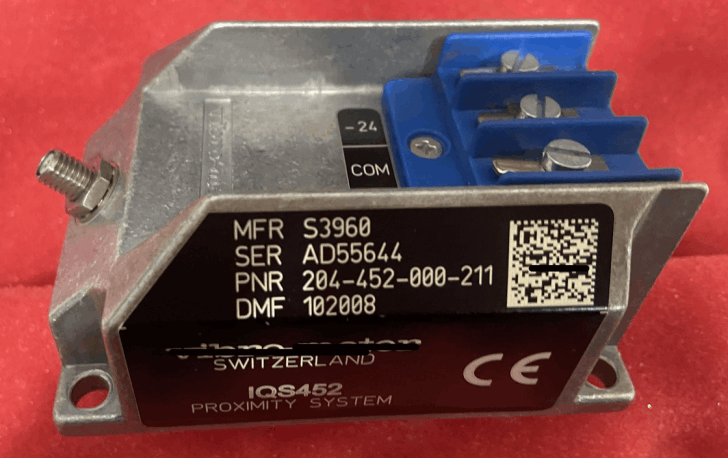

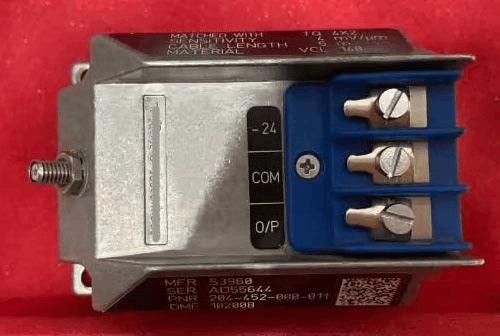

Meggitt IQS452 204-452-000-011 Signal Conditioner
Manufacturer: Meggitt
Product Number: IQS452 (204-452-000-011)
Category: Signal Conditioner
System Compatibility: TQ 422 or TQ 432 non-contact sensors
Function: Forms a calibrated proximity measurement system using eddy current principle
Application: Non-contact displacement measurement
Product Description
IQS452 204-452-000-011 is a non-contact displacement measurement signal conditioner. It is used with TQ 422 or TQ 432 non-contact sensors to form a calibrated proximity measurement system. The system uses the principle of electromagnetic induction to accurately measure the dynamic displacement of rotating machinery (such as shafts, bearings, etc.) and outputs a voltage/current signal proportional to the gap. It is suitable for industrial vibration monitoring, position detection and other applications.
Function & Features
- Non-contact Measurement: The IQS452 204-452-000-011 system combines a non-contact sensor with a signal conditioner, enabling precise measurement of the relative displacement of moving machine components without direct contact with the measured object.
- High-Frequency Modulation/Demodulation: The IQS452 204-452-000-011 signal conditioner incorporates a high-frequency modulator/demodulator, which supplies the sensor with a drive signal to generate the electromagnetic field necessary for gap measurement.
- High-Quality Circuit Components: The circuitry of the IQS452 204-452-000-011 signal conditioner is built from high-quality components and is housed in an aluminum enclosure.
Specifications
|
Parameter |
Specification |
| Model Number | IQS452 204-452-000-011 |
|
Voltage Range |
-20 V to -32 V |
|
Operating Current |
13 ± 1 mA (25 mA max.) |
|
Input Capacitance |
1 nF |
|
Input Inductance |
100 μH |
|
Voltage at min. GAP |
-2.4 V |
|
Voltage at max. GAP |
-18.4 V |
|
Dynamic range |
16 V |
|
Output impedance |
500 Ω |
|
Short - circuit current |
45 mA |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A:Signal Conditioner
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
