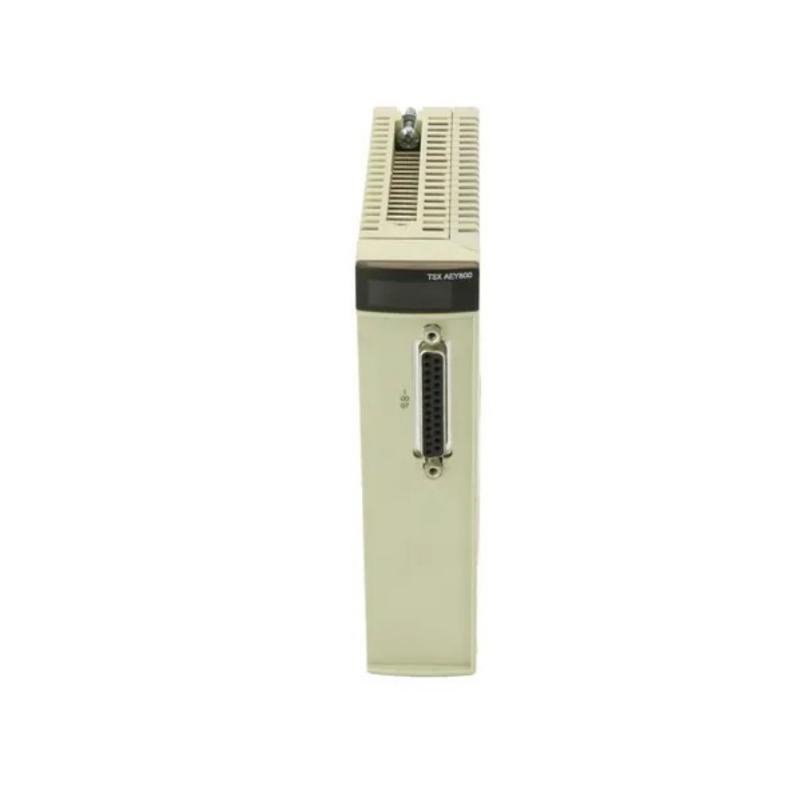

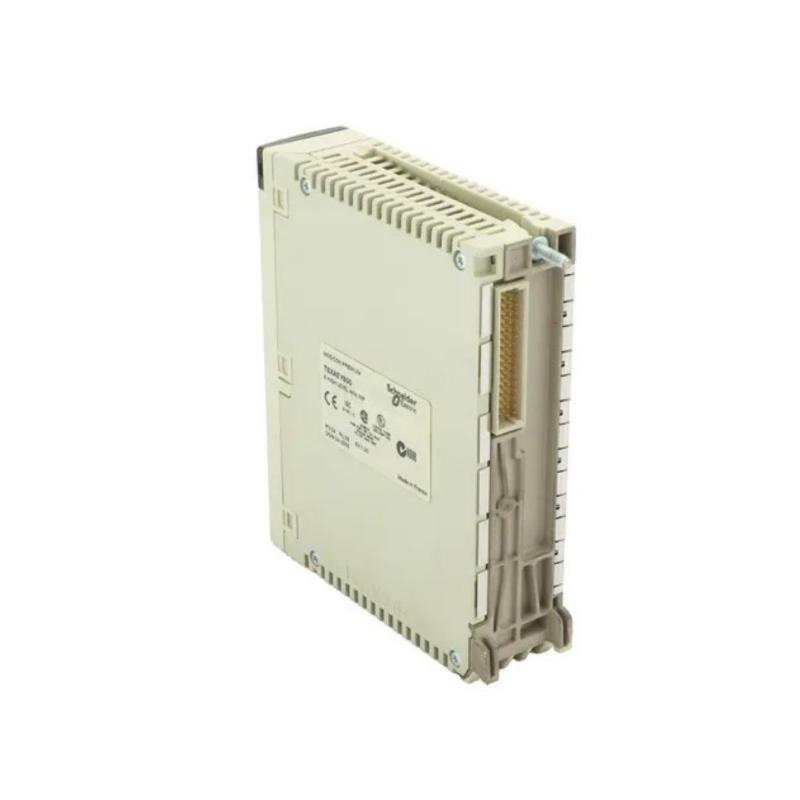

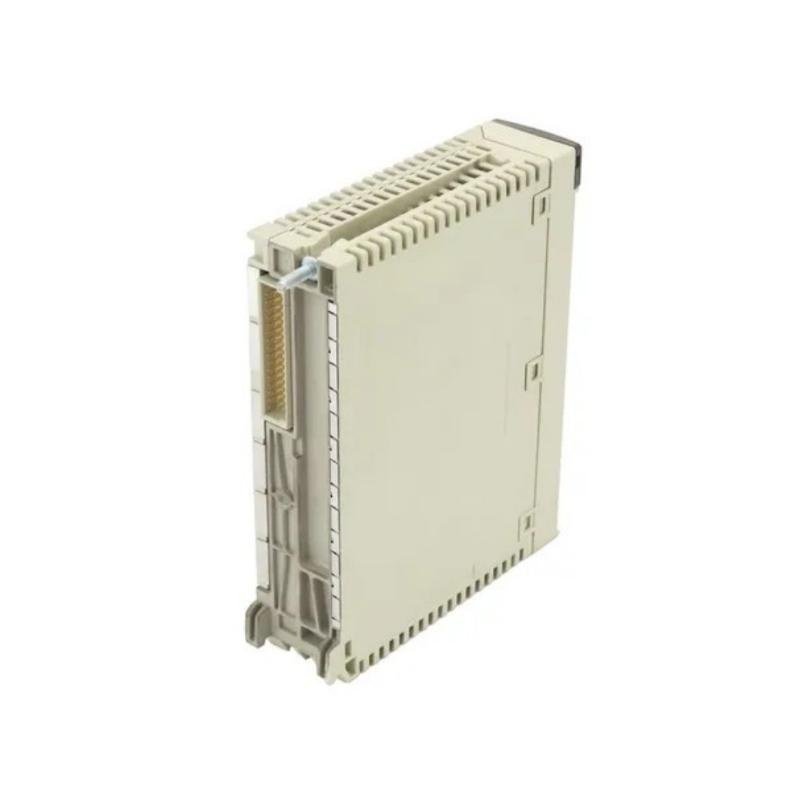

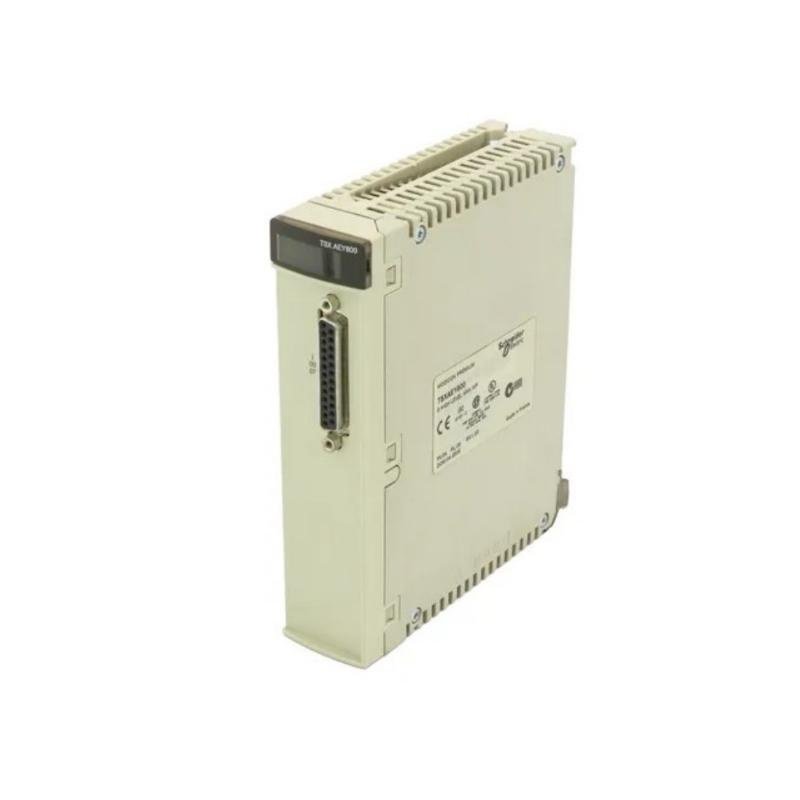

Schneider TSXAEY800 Analog Input Modules

The Schneider TSXAEY800 Analog Input Module is designed for high-precision data acquisition in industrial automation systems. With eight input channels, this module allows for the efficient measurement of analog signals from sensors such as temperature, pressure, and flow meters. It is compatible with Schneider Electric’s TSX series programmable logic controllers (PLCs), offering reliable and accurate signal conversion in a compact form factor. The TSXAEY800 is ideal for applications requiring high-quality, real-time data processing and monitoring.

Key Features

• Eight Input Channels–Provides eight independent analog input channels for versatile applications, supporting a wide range of sensor types.

• High-Resolution Measurement–12-bit resolution ensures accurate conversion of analog signals to digital data for reliable process monitoring and control.

• Multiple Signal Types–Supports both voltage (0-10V) and current (4-20mA) inputs, making it compatible with a wide variety of field devices.

• Fast Data Acquisition–High-speed sampling rate ensures real-time monitoring and quick responses for critical process control.

• Galvanic Isolation–Each input is electrically isolated to protect the system from noise, transients, and electrical faults, ensuring signal integrity and safety.

• Compact and Space-Efficient–The slim design of the module ensures efficient use of space, making it ideal for installations with limited room for components.

• Seamless Integration–Fully compatible with Schneider Electric’s TSX PLCs, simplifying the integration of analog inputs into automation systems.

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Industrial Automation–Essential for monitoring sensors in automated systems, collecting real-time analog data for precise control of machines and processes.

• Process Control–Ideal for industries such as chemical, pharmaceutical, and food processing, where monitoring of critical parameters like temperature, pressure, and flow is required.

• Building Management–Used in building automation systems to manage HVAC systems, temperature regulation, and other environmental controls.

• Energy Management–Perfect for monitoring and controlling energy consumption, capturing data from energy meters and sensors to optimize power usage.

• Machine Automation–Provides the necessary inputs for complex machine control systems, supporting functions such as speed control, temperature monitoring, and operational feedback.

The Schneider TSXAEY800 Analog Input Module offers high-performance and precise data acquisition capabilities in a compact and reliable package. Its flexibility in handling multiple signal types and its seamless integration with Schneider Electric’s TSX PLC systems make it an ideal solution for industrial applications that require high-quality analog input processing and control.
