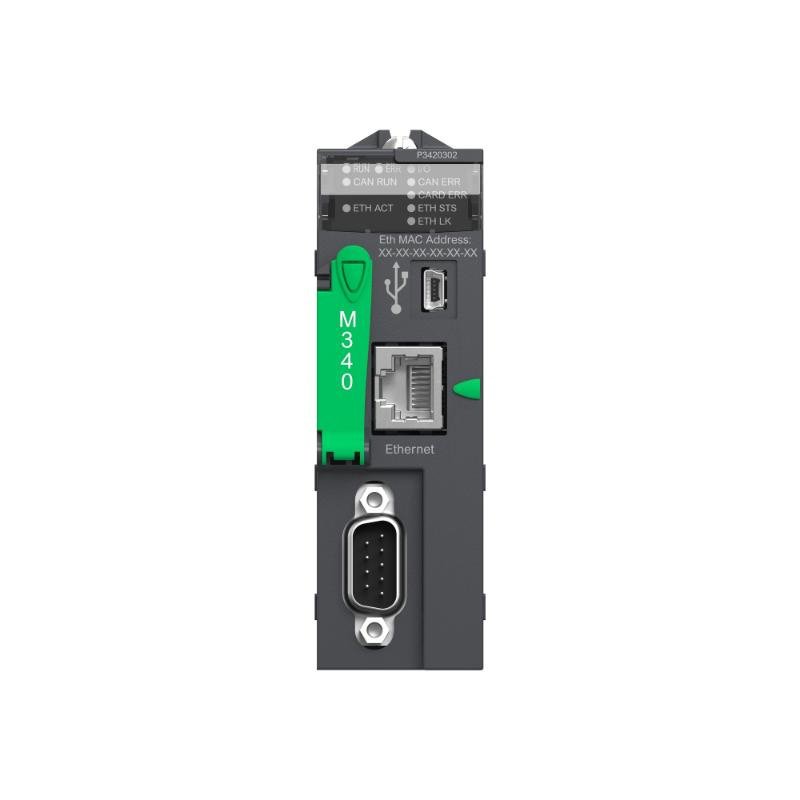

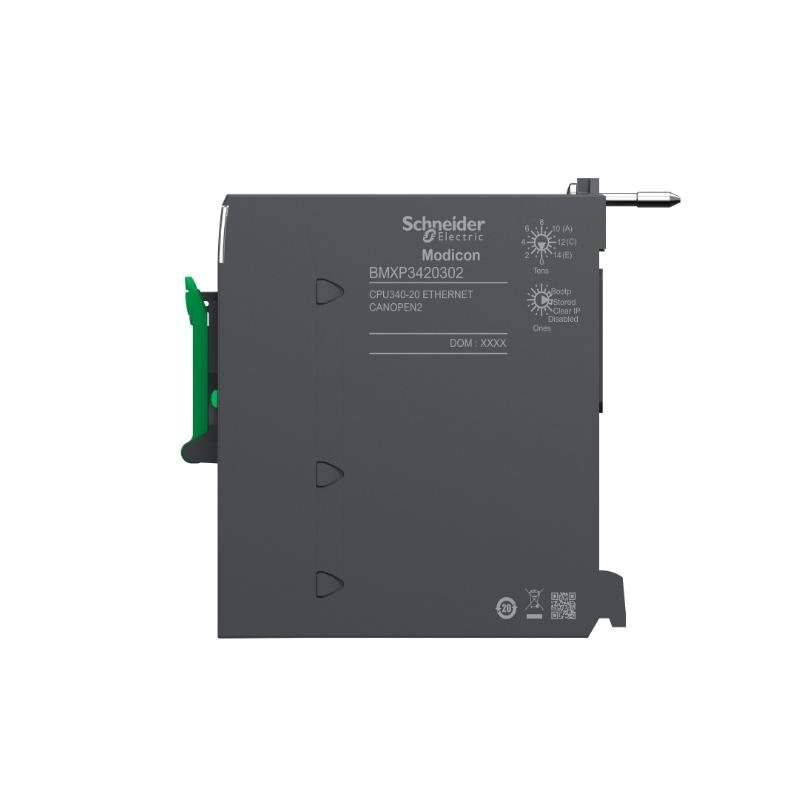

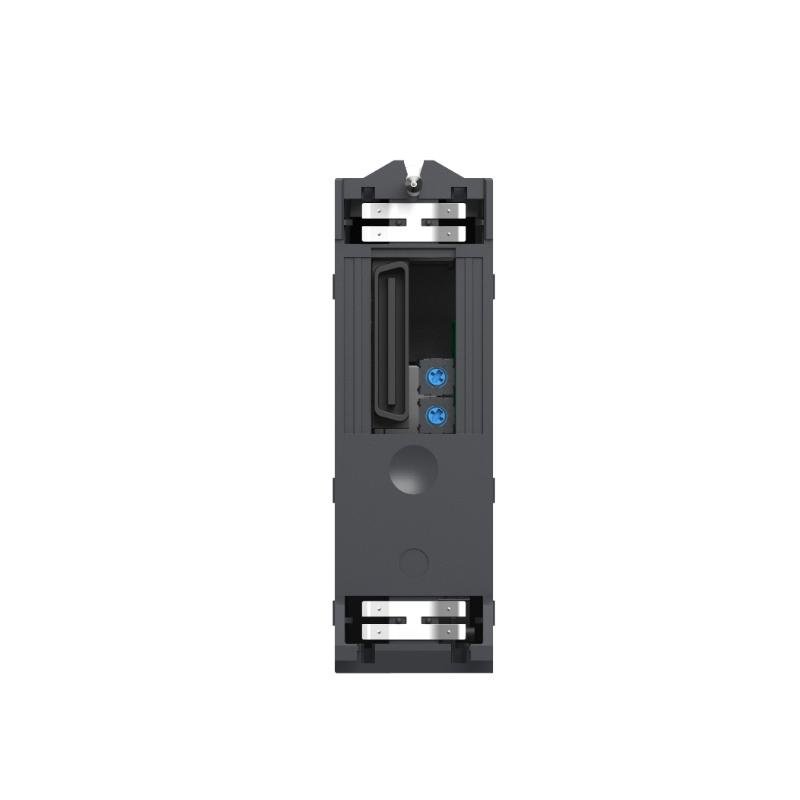

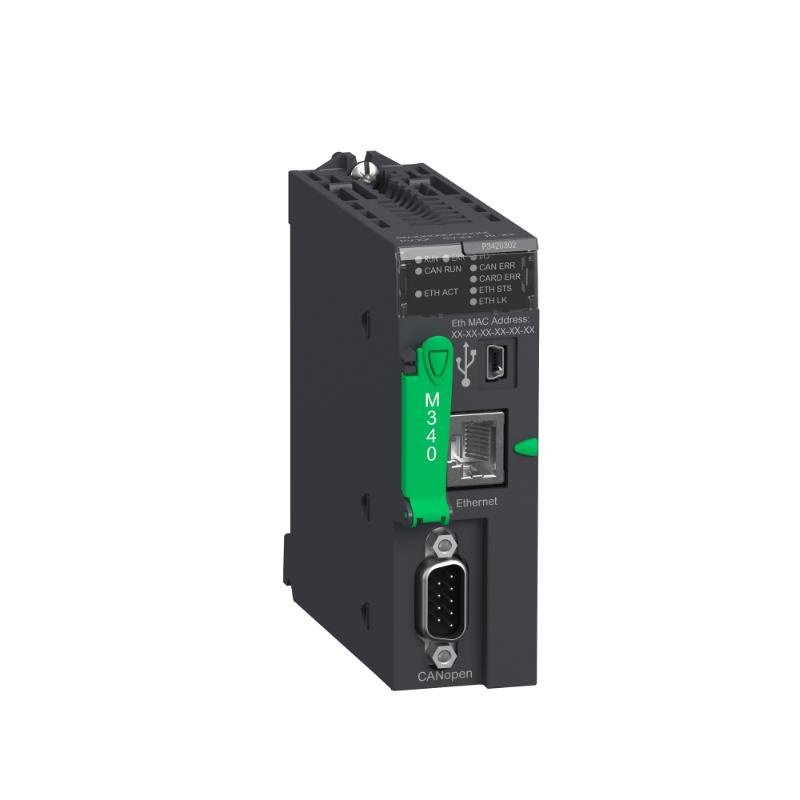

Schneider BMXP3420302 Processor Module
Manufacturer: Schneider Electric
Product Number: BMXP3420302
Category: Processor Module (Modicon M340 PLC)
Processor Speed: 120 MHz (typical)
Memory: 2 MB application memory
Communication: Integrated Ethernet, CANopen, serial
System Compatibility: Modicon M340 series PLCs
Product Description
The Schneider BMXP3420302 Processor Module is a powerful and reliable CPU designed for the Modicon M340 series of programmable logic controllers (PLCs). It offers advanced processing capabilities, integrated communication interfaces, and extensive memory to handle complex control and automation tasks. The module supports flexible programming and networking options, making it ideal for various industrial applications such as manufacturing, water treatment, and energy management.
Key Features
-
High-Speed Processing–Efficient 32-bit CPU for fast execution of control programs
-
Ample Memory–Supports large user programs and data storage
-
Integrated Ethernet Port–Facilitates communication and network connectivity
-
Multiple Communication Protocols–Supports Modbus TCP/IP, Ethernet/IP, and other protocols
-
Flexible Programming–Compatible with Schneider Electric’s Unity Pro software
-
Modular Design–Easily integrates with Modicon M340 I/O and communication modules
-
Robust Construction–Designed for industrial environments with wide temperature tolerance
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 104 x 100 x 33 mm |
| Weight | 0.215 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC nominal |
| Power Consumption | Typical 15 W |
| Processor Type | 32-bit CPU |
| Memory | Up to 2 MB user program and data memory |
| Communication Ports | 1x Ethernet 10/100 Mbps |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Shock/Vibration | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Schneider Electric Modicon M340 |
| Module Type | Processor Module |
| Module Support | Compatible with M340 I/O and communication modules |
Industry Applications
-
Manufacturing–Controls complex machinery and production lines
-
Water and Wastewater–Automates treatment and distribution processes
-
Energy Management–Manages electrical distribution and control
-
Building Automation–Integrates HVAC, lighting, and security controls
-
Food and Beverage–Ensures precise control in processing and packaging
The Schneider BMXP3420302 Processor Module provides reliable and high-speed control for demanding industrial automation applications. Its flexible communication options and seamless integration with the Modicon M340 system make it an essential component for scalable control architectures.
