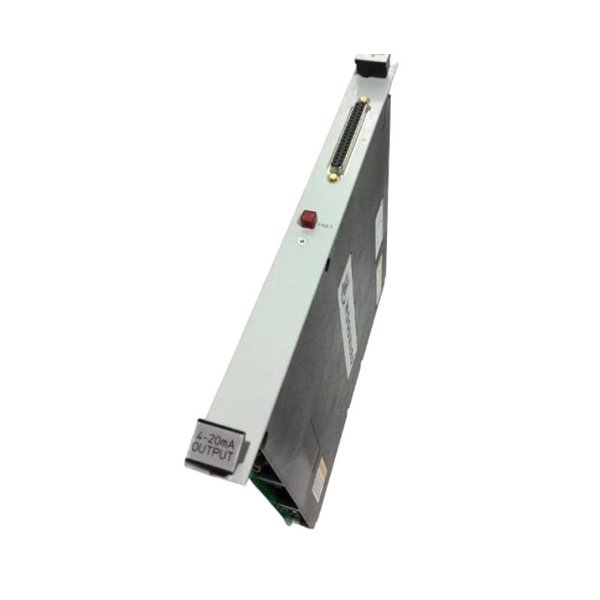

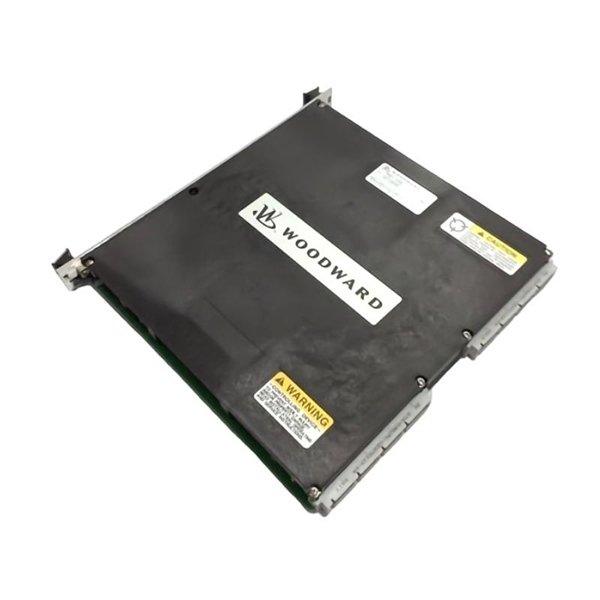

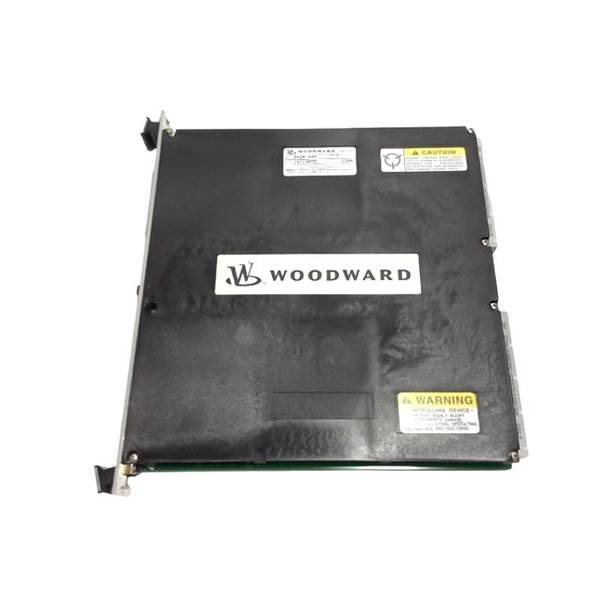

The Woodward 5464-648 8 Channel Analog Output Module is a precision-engineered component within Woodward’s renowned control system architecture, specifically designed to deliver stable, accurate analog signals to field devices. This module enables advanced process control by providing up to eight independent analog output channels, allowing direct communication with actuators, valves, drives, and other final control elements in automation systems.

Ideal for integration into MicroNet and Atlas control platforms, the 5464-648 enhances system flexibility, scalability, and responsiveness. It supports a range of output formats (such as 4–20 mA and 0–10 V), making it suitable for demanding control environments in power generation, oil and gas, marine, and industrial automation sectors.

Robust construction, excellent electrical isolation, and real-time diagnostics make this module a preferred choice for engineers seeking reliable and maintainable analog signal output solutions.

Product Specifications

Product Applications

The 5464-648 module is suited to a wide array of industrial applications that require precise analog signal output:

• Gas & Steam Turbine Control Systems: Outputs control signals to hydraulic actuators and variable-speed drives.

• Power Generation Facilities: Used for load control, voltage regulation, and auxiliary equipment management.

• Oil & Gas Platforms: Controls valve actuators, compressors, and other analog-driven equipment.

• Water Treatment Plants: Sends signals to modulate chemical dosing pumps or variable-speed motors.

• Marine Control Systems: Regulates steering, propulsion, and auxiliary subsystems.

• Manufacturing Automation: Communicates with analog-driven industrial robots and positioning systems.

Product Advantages

• Multi-Channel Output: Offers eight fully isolated and independently configurable analog outputs in a single module, improving space efficiency.

• High Accuracy and Stability: Ensures minimal signal drift and reliable performance in demanding applications.

• Flexible Output Formats: Supports both current and voltage signal types to match a wide variety of field devices.

• System Integration: Seamlessly integrates with Woodward control platforms like MicroNet and Atlas, allowing centralized configuration.

• Fault Tolerance: Each channel has built-in fault detection and isolation capabilities to maintain system stability.

• Robust Design: Industrial-grade housing and internal electronics ensure performance in harsh conditions.

• Ease of Maintenance: Diagnostic indicators simplify troubleshooting and reduce downtime during maintenance.

Frequently Asked Questions (FAQ)

1. What type of signals does the 5464-648 module output?

   It supports both 4–20 mA current loop and 0–10 VDC voltage output, configurable per channel.

2. Can the module operate with mixed signal types across channels?

   Yes, channels can be individually configured for current or voltage output based on system requirements.

3. How many output channels does it provide?

   It provides eight independent analog output channels.

4. Is it hot-swappable?

   While designed for minimal disruption, hot-swapping depends on system configuration; it’s safer to power down for replacement.

5. Does it support real-time diagnostics?

   Yes, it has built-in fault detection and LED status indicators for each channel.

6. What is the typical application of this module?

   It’s commonly used to drive analog actuators and control elements in turbine, power plant, and process automation systems.

7. Can I use it in extreme environments?

   Yes, it operates within a wide temperature and humidity range, suitable for harsh industrial settings.

8. What platforms is it compatible with?

   It integrates seamlessly with Woodward MicroNet and Atlas control systems.

9. Is the output isolated from each other?

   Yes, each channel is electrically isolated to prevent interference and enhance safety.

10. How often does it need calibration?

    Periodic calibration is recommended based on usage and system standards, although it retains accuracy for extended periods.
