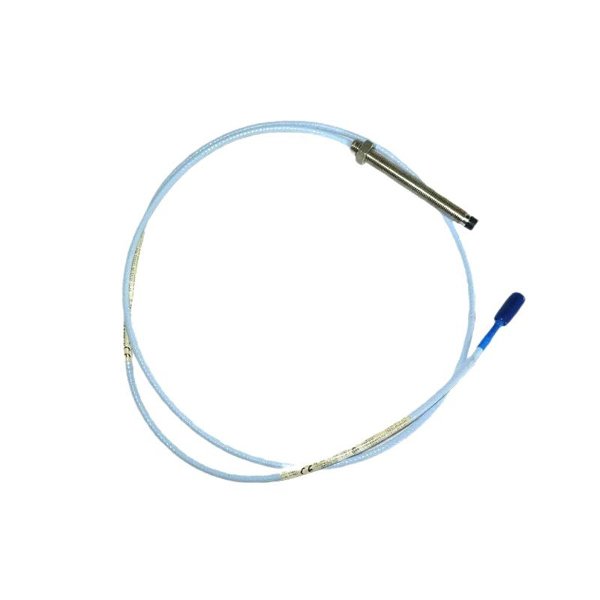

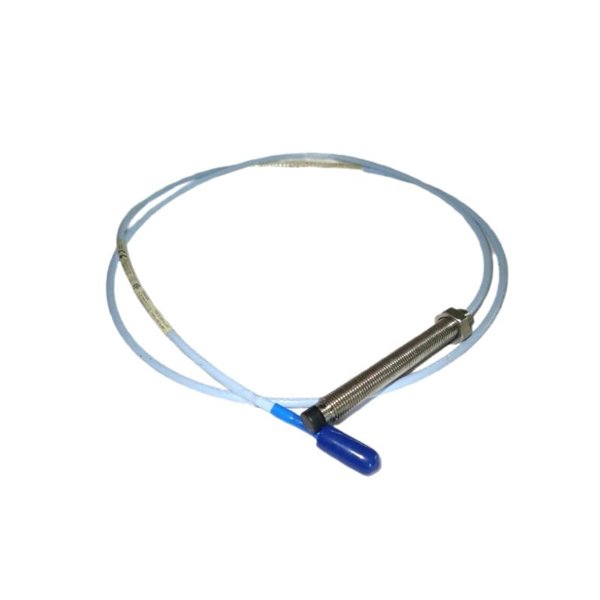

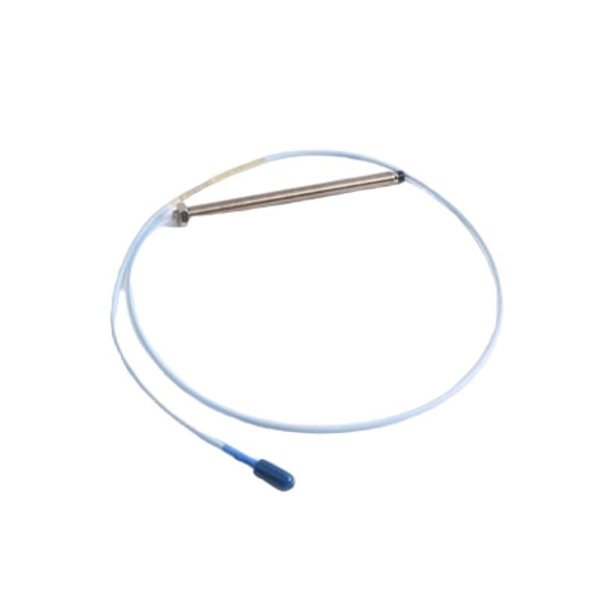

The Bently Nevada 330101-00-55-10-02-05 is part of the trusted 3300 XL 8mm Proximity Transducer System, renowned for its high accuracy, robust construction, and long-term reliability in the field of rotating machinery monitoring. Engineered to monitor shaft position and vibration, this probe is a critical component in ensuring the safe and efficient operation of large industrial assets such as turbines, compressors, motors, and generators.

The 3300 XL system is designed to meet the demanding API 670 standard, which ensures performance under harsh industrial conditions,manufactured by Bently Nevada, a leader in condition monitoring and machinery protection systems, this probe integrates seamlessly with the company’s 3300 Proximitor® sensors and offers backward compatibility with legacy systems.

Product Specifications

Applications

The 330101-00-55-10-02-05 proximity probe is widely employed in critical condition monitoring and protection systems across various industries. Its primary uses include:

• Shaft Vibration Monitoring

  Detects dynamic movement of rotating shafts, aiding in the early detection of imbalance or misalignment.

• Shaft Position (Axial Thrust) Monitoring

  Measures the axial position of shafts to protect against thrust bearing failure.

• Overspeed Protection Systems

  Used in conjunction with other monitoring devices for high-speed rotating equipment.

• Rotor Dynamics and Diagnostics

  Provides data essential for understanding machinery behavior and predictive maintenance.

Industries commonly using this model include:

• Power generation (steam/gas turbines)

• Oil and gas (compressors, pumps)

• Petrochemical processing

• Water treatment facilities

• Marine and shipping industry

Product Advantages

• Precision Measurement

  Offers ±2.8 mil accuracy, enabling early detection of mechanical faults.

• Long Cable Support

  Equipped with a 1 meter extension cable, ideal for remote installations.

• API 670 Compliant

  Fully meets the stringent machinery protection standards outlined by API 670.

• Stainless Steel Body

  Ensures corrosion resistance and long operational life even in aggressive environments.

• ClickLoc™ Connector

  Secure, vibration-resistant connector prevents accidental disconnection.

• Broad Operating Temperature Range

  Performs reliably from -35°C to +177°C.

• Compatible with 3300 Proximitor® Sensors

  Seamless integration into existing Bently Nevada 3300 and 3500 monitoring systems.

• Backwards Compatibility

  Compatible with older 7200 series systems, supporting legacy upgrades.

• Global Trust and Proven Performance

  Used in thousands of installations worldwide for machinery protection.

• Maintenance-Free Operation

  Once installed, the probe requires minimal maintenance or recalibration.

Frequently Asked Questions (FAQs)

1. How does the 330101-00-55-10-02-05 proximity probe contribute to rotating machinery protection?

   It detects real-time shaft displacement and vibration amplitude, enabling predictive maintenance and preventing failures like bearing wear or misalignment in turbines, compressors, and motors.

2. What type of connector locking mechanism does this model utilize?

   The probe features a ClickLoc™ connector, which ensures a secure, vibration-resistant connection, eliminating the risk of loosening under high mechanical stress.

3. Is this probe suitable for long-distance installations from the monitoring module?

   Yes. With a total system cable length of 1 meter (plus the probe’s integral cable), it is specifically engineered for installations where the proximitor or monitoring rack is located far from the probe mounting point.

4. How does temperature impact the performance of this probe?

   The probe maintains linearity and accuracy within its operational range of –35°C to +177°C. Performance remains stable due to the high-grade materials used in the sensor’s body and insulation.

5. Can this proximity probe be installed in an oil-contaminated environment?

   Yes. The stainless-steel body and hermetic sealing allow it to operate reliably in environments exposed to oil mist, splashes, or vapors, such as compressor housings and turbine bearings.

6. Does the probe require recalibration during routine maintenance cycles?

   No. The probe is factory calibrated and designed to retain its calibration over years of service unless physically damaged or tampered with.

7. What mounting configurations are supported for the probe’s threaded body?

   It supports 1/4-28 UNF-2A thread for standard mounting brackets and blocks. It can be installed directly or via adjustable probe holders depending on access requirements.

8. What system bandwidth does this probe support for dynamic measurements?

   The probe system is capable of responding to signals up to 10 kHz, making it well-suited for both slow and high-speed rotating equipment where detailed vibration signatures are needed.

9. How does this probe integrate into an existing 3300 XL or 3500 Series monitoring rack?

   It connects via the extension cable to a 3300 XL Proximitor® Sensor, which in turn links to the monitoring rack using standard wiring. No additional signal conditioning is required.

10. Is it possible to use this probe in an environment requiring API 670 compliance?

    Yes. The entire 3300 XL proximity system, including this probe model, is engineered and tested to meet API 670 specifications for vibration and position monitoring in critical machinery.
