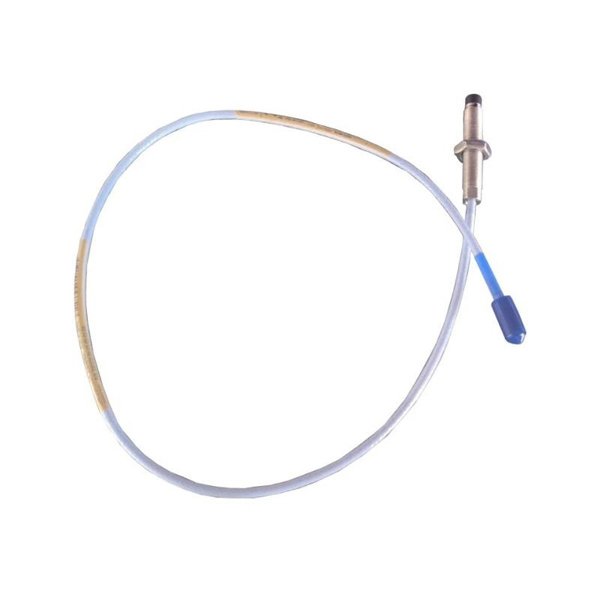

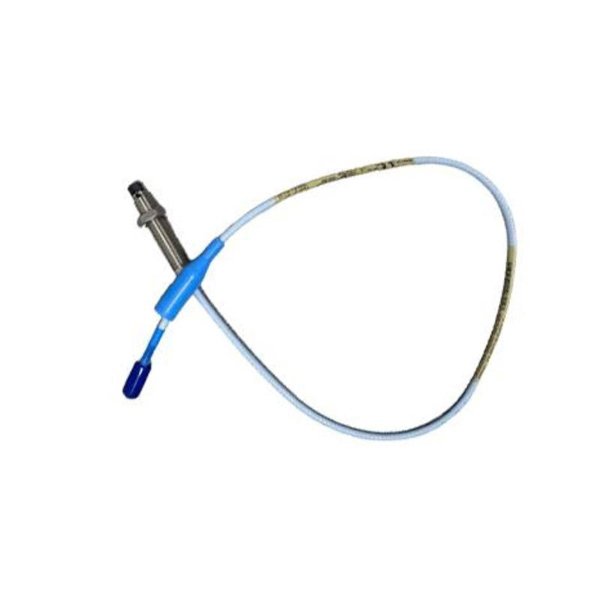

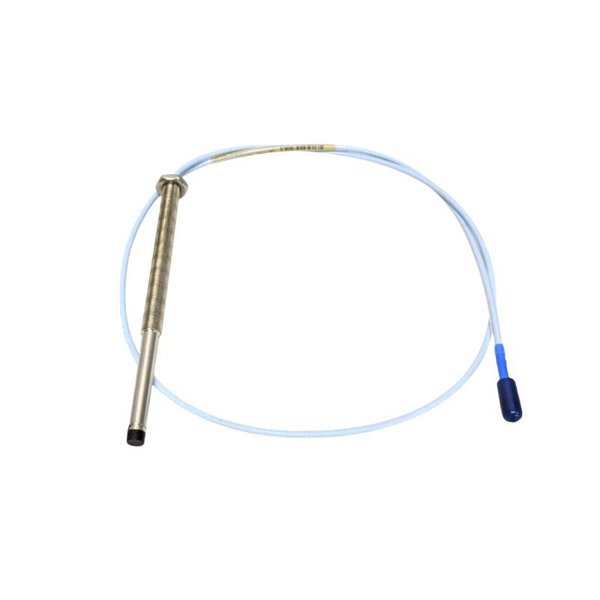

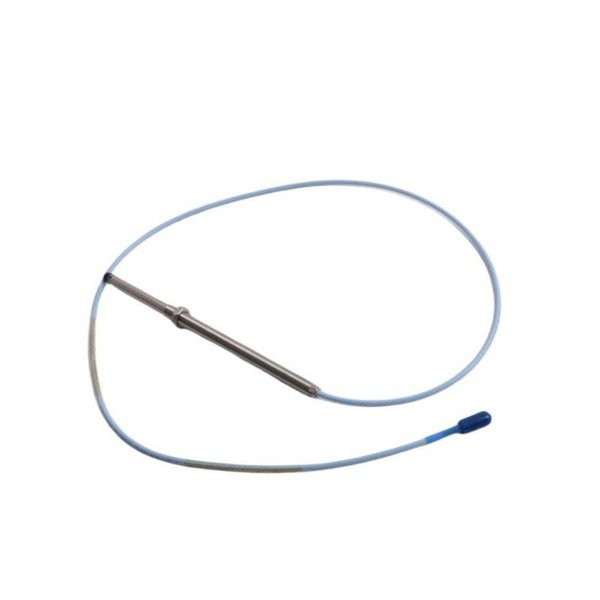

Bently Nevada 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-13-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:28
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-13-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It provides accurate, linear, and reliable measurement of shaft vibration and position in critical machinery. The probe’s rugged design ensures long-term durability in industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Bend Radius | 25.4 mm |
| Linear Range | 0.25–2.3 mm |
| Recommended Gap | ~1.27 mm |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | 0–10 kHz |
| Minimum Shaft Diameter | 50.8 mm |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
Applications
-
Vibration monitoring in fluid-film bearing machines
-
Shaft position measurement
-
Keyphasor speed reference and phase detection
-
Overspeed protection systems
Advantages
-
Complies with API 670 standards
-
Fully interchangeable components (probe, extension cable, sensor)
-
Superior RFI/EMI immunity for reliable performance
-
Robust construction with patented TipLoc and CableLoc
-
Extended temperature range options available
-
Gold-plated ClickLoc connectors for easy, secure installation
FAQ
Q1: What is the linear measurement range of this probe?
A1: The linear range is from approximately 0.25 mm to 2.3 mm.
Q2: Does this probe comply with API 670 standards?
A2: Yes, it fully complies with API 670 for mechanical configuration, accuracy, and linearity.
Q3: Can the probe operate in high-temperature environments?
A3: The standard probe can handle up to +177°C, with extended temperature versions available up to +218°C.
Q4: Is the probe interchangeable with other 3300 series components?
A4: Yes, it is backward-compatible and fully interchangeable with non-XL 3300 8 mm and 5 mm components.
Q5: What is the recommended gap voltage?
A5: The recommended gap setting corresponds to approximately -9 Vdc or 1.27 mm.
Q6: What materials are used for the connectors?
A6: The connectors are gold-plated brass or beryllium copper.
Q7: How resistant is the probe to electromagnetic interference?
A7: The probe system is highly immune to RFI/EMI, meeting CE mark approvals.
Q8: Does it require any special tools for installation?
A8: No, the SpringLoc and ClickLoc features eliminate the need for special tools.
Q9: What is the typical frequency response?
A9: The frequency response is flat up to 10 kHz.
Q10: Can the probe be used in hazardous areas?
A10: Yes, it is approved for use in Class I, Zone 0 and Zone 2 environments when installed per guidelines.
