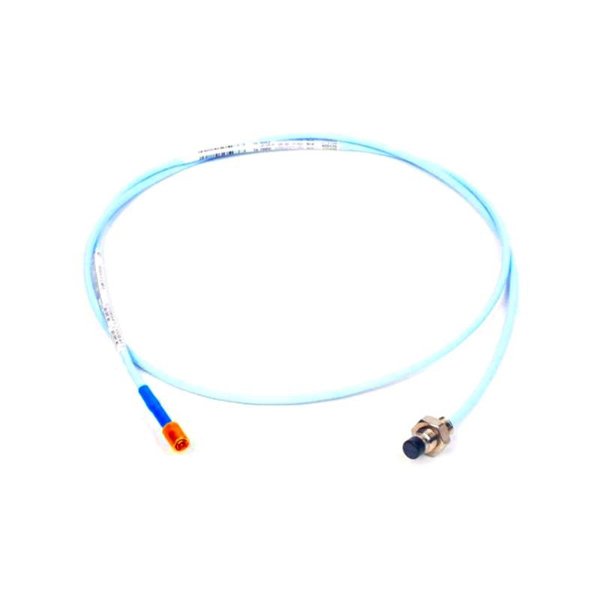

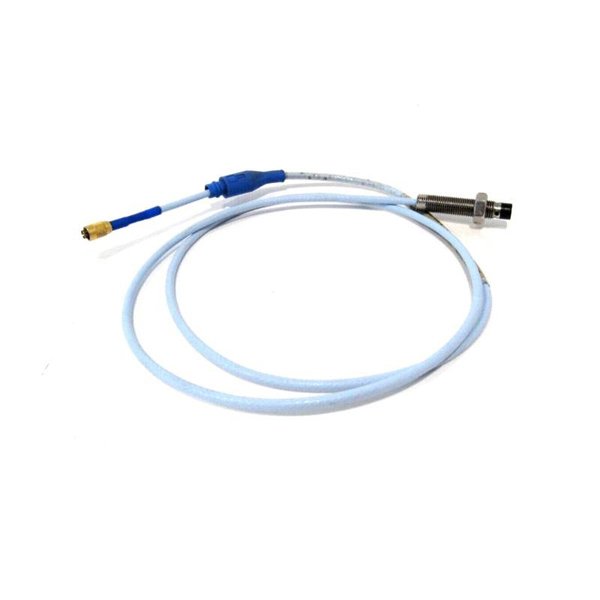

Bently Nevada 330101-00-24-10-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-24-10-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:36
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-24-10-02-00 is part of the 3300 XL 8 mm Proximity Transducer System. This proximity probe provides highly accurate measurements of static position and dynamic vibration for fluid-film bearing machines. It outputs a voltage proportional to the distance between the probe tip and the conductive target surface. Fully compliant with API 670 standards, it offers superior robustness, EMI immunity, and ease of installation.
Applications
-
Vibration and position monitoring of fluid-film bearing machines
-
Keyphasor reference signal generation
-
Overspeed and shaft displacement measurements
Advantages
-
Fully API 670 compliant
-
Interchangeable components without recalibration
-
Excellent RFI/EMI immunity
-
Rugged construction with high pull strength
-
Optional extended temperature range and FluidLoc oil-sealing cable
-
ClickLoc connectors for secure, tool-free connection
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Cable Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 0.25 to 2.3 mm |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C (Standard) |
| Extended Temperature Option | Up to +218°C |
| Output Sensitivity | 200 mV/mil ±5% |
| Recommended Gap | 1.27 mm |
| Minimum Shaft Diameter | 50.8 mm |
FAQ
Q1: What is the primary use of this proximity probe?
A1: It is used for vibration and position measurement on rotating machinery with fluid-film bearings.
Q2: Is it API 670 compliant?
A2: Yes, it meets API 670 mechanical, linear range, accuracy, and temperature stability requirements.
Q3: Can it operate in high-temperature environments?
A3: Yes, with the extended temperature range (ETR) option, it can withstand up to 218°C.
Q4: Is calibration needed when replacing components?
A4: No, probes, cables, and Proximitor sensors are fully interchangeable without recalibration.
Q5: How is EMI immunity ensured?
A5: The probe design includes improved RFI/EMI immunity, meeting CE mark approvals.
Q6: What is the recommended minimum shaft diameter?
A6: 50.8 mm, with optimal performance at 76.2 mm or larger.
Q7: How is oil leakage prevented?
A7: An optional FluidLoc cable prevents oil or liquids from leaking through the cable.
Q8: Are special tools required for installation?
A8: No, ClickLoc connectors provide secure, tool-free connections.
Q9: What materials are used in construction?
A9: The probe body is stainless steel, and the tip is PPS plastic.
Q10: Can it be used for overspeed detection?
A10: Yes, but consult specific application notes for tachometer or overspeed use cases.
