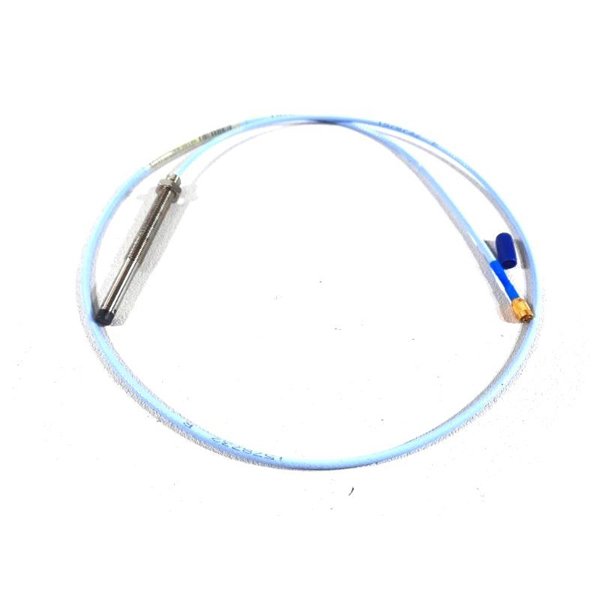

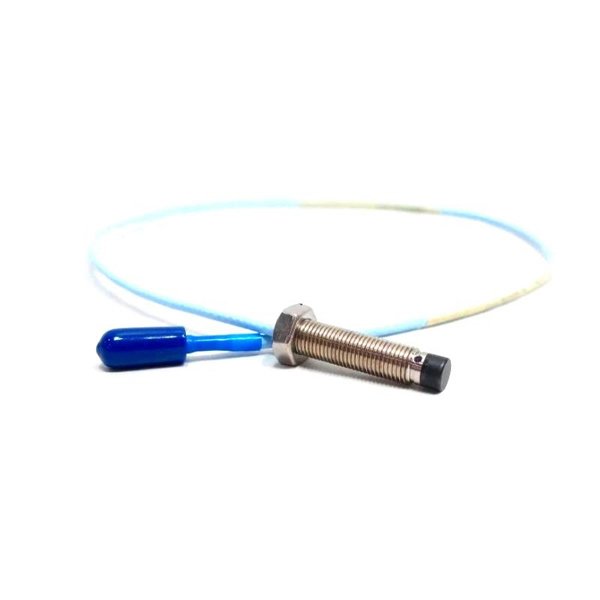

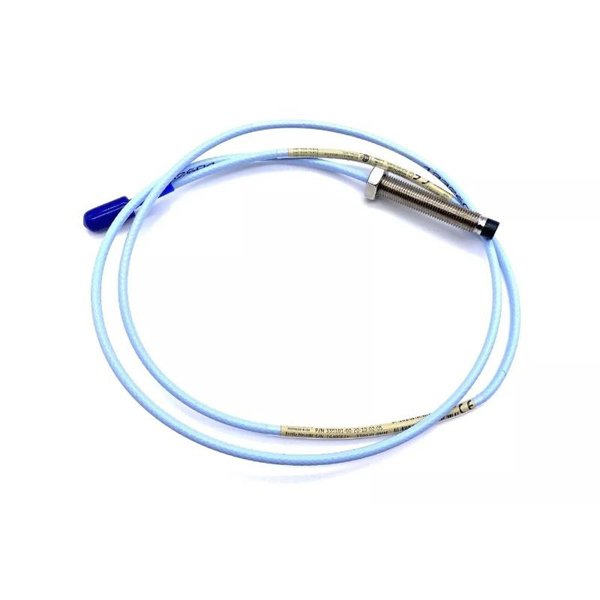

Bently Nevada 330101-00-45-10-11-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-45-10-11-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-45-10-11-05 is part of the 3300 XL 8 mm Proximity Transducer System, engineered to deliver accurate and stable measurements of shaft vibration and position in rotating machinery. It includes a non-contact probe that translates the gap distance to voltage, ideal for fluid-film bearing machines.
Key Applications
-
Shaft vibration monitoring
-
Axial/radial position measurement
-
Overspeed protection systems
-
Keyphasor reference signal generation
-
Industrial turbines, compressors, and motors
Product Advantages
-
API 670 Compliance: Meets all standard criteria for performance and configuration
-
Full Interchangeability: Mix and match with other XL/non-XL 3300 series components
-
Durable Design: Enhanced resistance with TipLoc and CableLoc technologies
-
Extended Temperature Support: Withstands temperatures up to +218°C
-
EMI/RFI Protection: Safe for use in high-interference zones without special shielding
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-45-10-11-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Cable Type | 75Ω Triaxial FEP insulated |
| Cable Connector | ClickLoc, Miniature coaxial with protector |
| Operating Temp (Standard) | -52°C to +177°C |
| Operating Temp (ETR) | -52°C to +218°C (probe tip), up to +260°C (cable) |
| Minimum Target Size | 15.2 mm diameter |
| Recommended Shaft Diameter | ≥76.2 mm |
FAQ – Frequently Asked Questions
Q1: What does the part number 330101-00-45-10-11-05 represent?
A1: It specifies the 3300 XL 8 mm probe with thread, unthreaded/case length options, 1.0 m length, FluidLoc cable, connector protector, and certified approvals.
Q2: Can this probe be used for both vibration and position monitoring?
A2: Yes, it is suitable for both static (position) and dynamic (vibration) measurements.
Q3: Does it meet API 670 standards?
A3: Yes, it fully complies with API 670 in terms of accuracy, linear range, and configuration.
Q4: What is the linear operating range of this probe?
A4: The linear range is 2 mm, from 0.25 mm to 2.3 mm.
Q5: Can this probe be installed in hazardous areas?
A5: Yes, it supports CSA, ATEX, and IECEx certifications for hazardous environments.
Q6: Is the cable resistant to oil ingress?
A6: Yes, it uses FluidLoc technology to prevent oil leakage through the cable.
Q7: What is the durability of the connector system?
A7: It uses corrosion-resistant ClickLoc connectors that lock securely and require no tools.
Q8: Can it be mounted in tight spaces?
A8: For limited spaces, a 5 mm variant is available; this 8 mm probe is more robust.
Q9: What happens if the probe is exposed to high humidity?
A9: It remains within ±3% ASF variation even in 93% humidity for up to 56 days.
Q10: Is the sensor compatible with older 3300 systems?
A10: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
