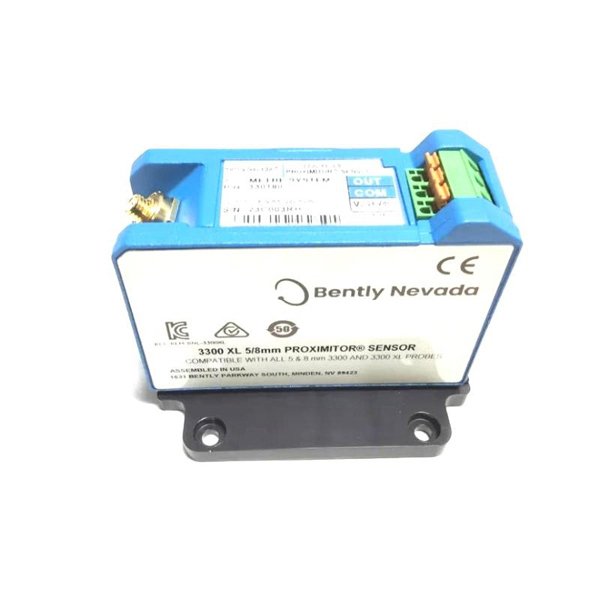

Bently Nevada 330180-X1-RU 145655-23 3300 XL Proximitor Sensor

The Bently Nevada 330180-X1-RU 145655-23 is part of the 3300 XL 8 mm Proximity Transducer System, designed for high-accuracy vibration and position measurements on fluid-film bearing machines. It measures both static and dynamic parameters and supports Keyphasor reference and speed monitoring. The sensor provides exceptional linearity, extended temperature capabilities, and compliance with API 670 standards.

Its rugged construction, advanced RFI/EMI immunity, and compatibility with high-density DIN-rail or panel mounting make it suitable for demanding industrial environments. The unit ensures full interchangeability of probes, extension cables, and sensors, minimizing downtime and simplifying maintenance.

Technical Specifications

Applications

• Vibration monitoring for turbines, compressors, and pumps

• Shaft position and radial vibration measurements

• Keyphasor reference signal acquisition

• Speed monitoring in rotating machinery

• Condition monitoring in petrochemical and power generation plants

• Overspeed protection systems

Advantages

• High Accuracy – Complies with API 670 for precision measurements

• Full Interchangeability – Compatible with other 3300-series 5 mm and 8 mm components

• Robust Construction – Resistant to physical damage and harsh conditions

• Enhanced EMI/RFI Immunity – Stable performance in electrically noisy environments

• Flexible Mounting – Supports DIN rail or panel installation

• Extended Temperature Options – Operates in high-temperature industrial conditions

FAQ

Q1: What is the main function of the 330180-X1-RU Proximitor Sensor?

A1: It converts the signal from a proximity probe into a voltage proportional to the distance between the probe tip and a target surface.

Q2: Is it compatible with older Bently Nevada probes?

A2: Yes, it is backward compatible with non-XL 3300-series 5 mm and 8 mm probes.

Q3: Can it be used in hazardous areas?

A3: Yes, it has CSA, ATEX, and IECEx approvals for hazardous locations.

Q4: Does it meet API 670 requirements?

A4: Yes, it fully complies with API 670 standards for mechanical configuration, range, and accuracy.

Q5: What is the recommended probe gap setting?

A5: Approximately -9 VDC, which equals about 1.27 mm (50 mils).

Q6: Can it handle high ambient temperatures?

A6: Standard models operate up to +100°C; extended temperature versions are available.

Q7: What is the frequency response range?

A7: 0–10 kHz, with ±3 dB accuracy.

Q8: Is special wiring required?

A8: Shielded triad cable is recommended, up to 305 m between the sensor and monitor.

Q9: What type of mounting options are available?

A9: It can be mounted on a DIN rail or directly on a panel.

Q10: What industries typically use this sensor?

A10: Oil & gas, petrochemical, power generation, and heavy machinery industries.
