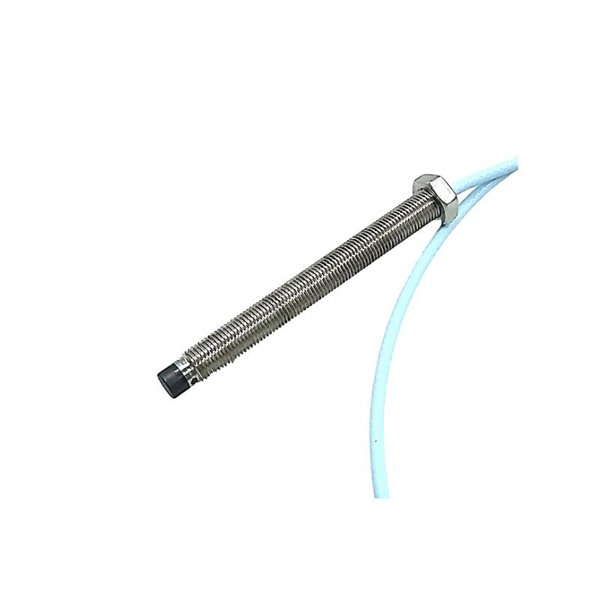

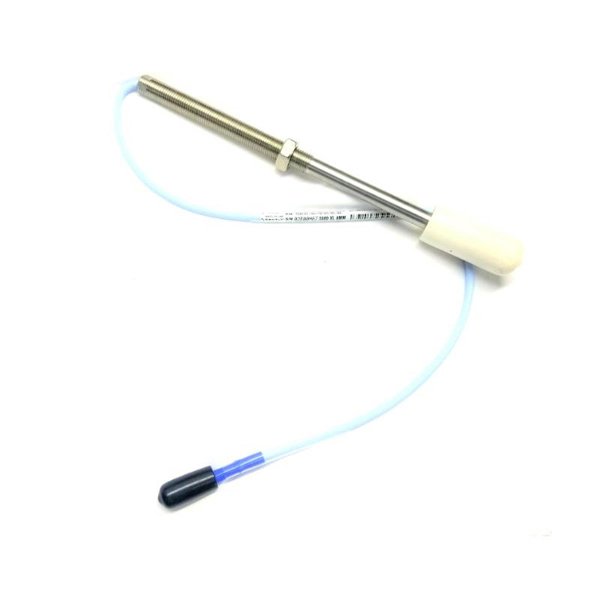

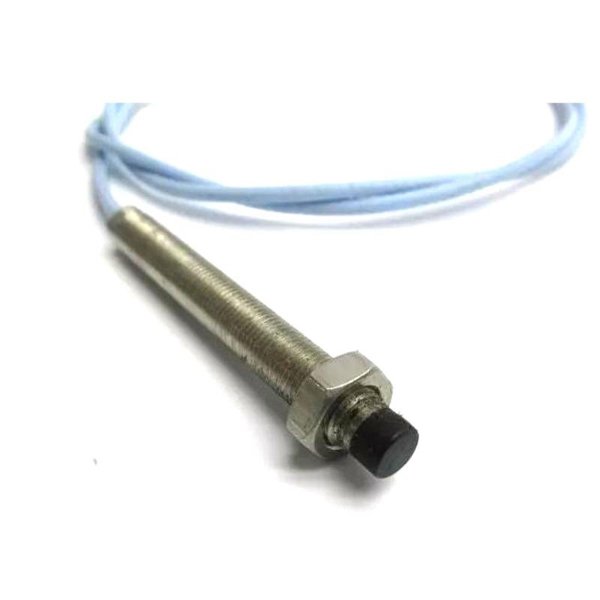

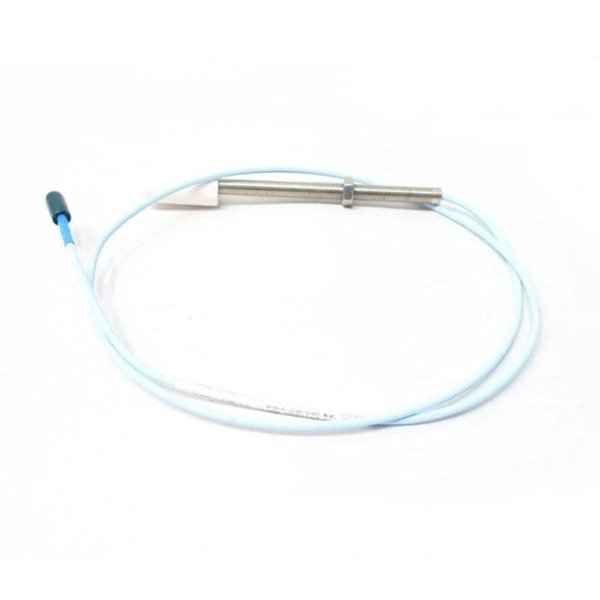

Bently Nevada 330101-00-65-10-11-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-65-10-11-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:50
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-65-10-11-00 is a 3300 XL 8 mm Proximity Probe, part of a complete eddy current transducer system used for measuring vibration and position in fluid-film bearing machines. It provides accurate, reliable output in demanding industrial environments.
Applications
-
Shaft vibration and axial position monitoring
-
Radial and axial displacement on rotating equipment
-
Keyphasor and speed signal detection
Product Advantages
-
Fully compliant with API 670 standard
-
ClickLoc connectors ensure secure connections without tools
-
FluidLoc cable option prevents oil migration
-
TipLoc and CableLoc technologies enhance mechanical robustness
-
High immunity to RFI/EMI, allowing installation in fiberglass enclosures
-
No matching of probe, extension cable, and Proximitor sensor required
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330101-00-65-10-11-00 |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Cable Type | 75 Ω triaxial, FEP insulated |
| Material (Probe Case) | AISI 303 or 304 Stainless Steel |
| Thread Size | 3/8-24 UNF |
| Operating Temperature Range | –52°C to +177°C |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ± 5% |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Mounting Torque (Standard Probe) | 11.2 N·m (100 in·lbf) recommended |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended 76.2 mm (3 in) |
FAQs
Q1: What does this probe measure?
A1: It measures both static (position) and dynamic (vibration) displacement of conductive targets.
Q2: Is it compatible with older 3300 series components?
A2: Yes, it is backward-compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Does the probe require calibration with other system components?
A3: No, it supports full interchangeability—no matching or bench calibration needed.
Q4: Can the probe operate in high-temperature environments?
A4: Yes, it supports up to 177°C. Extended Temperature Range (ETR) models are available for up to 218°C.
Q5: What type of connector does it use?
A5: ClickLoc miniature coaxial connectors, requiring no tools for installation.
Q6: What is the typical installation torque?
A6: Recommended torque is 11.2 N·m (100 in·lbf) for standard forward-mount probes.
Q7: Is it suitable for hazardous environments?
A7: Yes, it holds multiple certifications including ATEX, CSA, and IECEx for hazardous area use.
Q8: What is the effect of humidity on the probe’s accuracy?
A8: Less than 3% change in scale factor under 93% relative humidity over 56 days.
Q9: Does it include a cable and sensor?
A9: No, this part number refers specifically to the probe. Extension cables and Proximitor sensors are sold separately.
Q10: What is the linear measurement range?
A10: 0.25 mm to 2.3 mm (10 mils to 90 mils).
