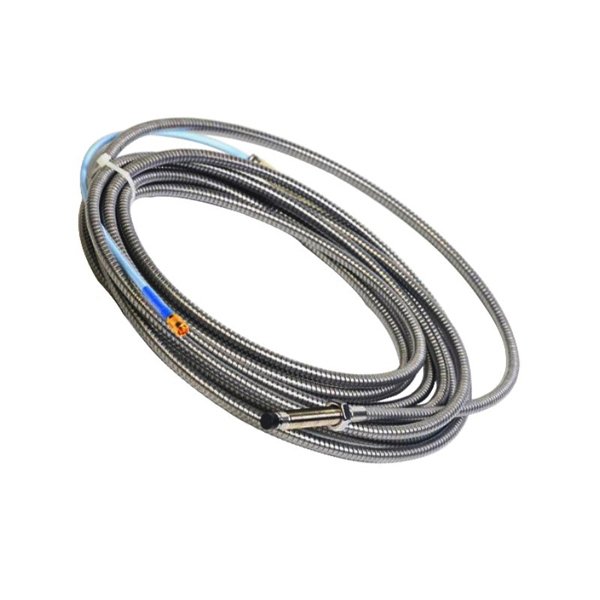

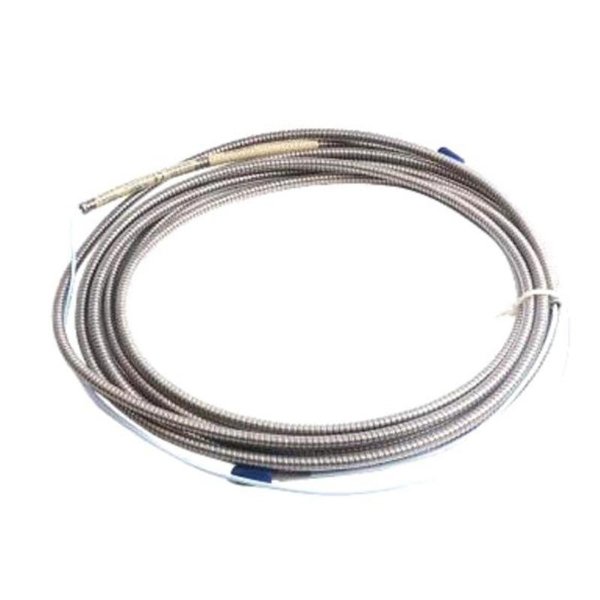

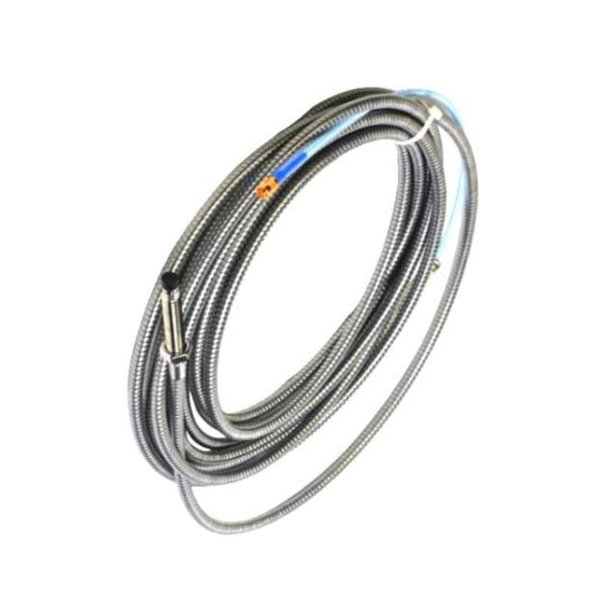

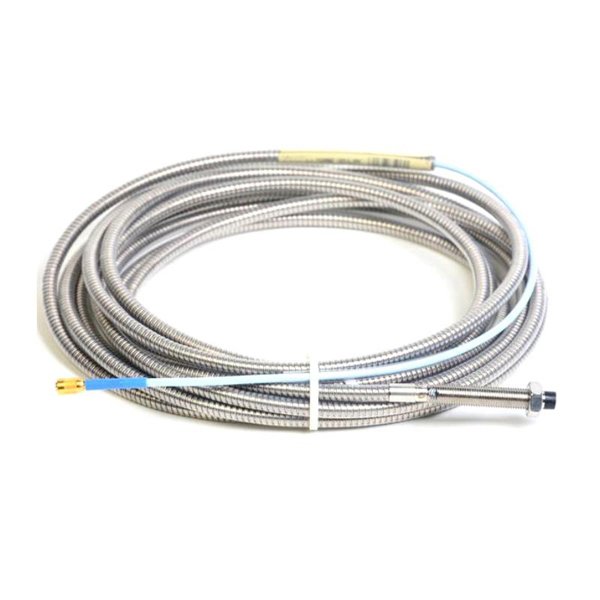

Bently Nevada 330103-00-08-90-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-08-90-02-00 is an 8 mm 3300 XL Proximity Probe, part of the industry-leading 3300 XL machinery protection system. Designed for precise rotor and machinery vibration monitoring, this proximity probe is widely adopted in power generation, oil & gas, and heavy industrial applications.

Product Advantages

• High Reliability: Consistent performance in extreme temperatures, high vibration environments, and electrically noisy conditions.

• Precise Measurement: Accurate detection of shaft displacement down to micrometer resolution.

• Compatibility: Seamless integration with the 3300 XL monitoring system.

• Durable Construction: Designed to withstand chemical exposure, oil, and moisture, ensuring long-term stable operation.

• Enhanced Safety: Supports predictive maintenance by providing early warning of shaft instability, reducing unplanned downtime.

• Ease of Installation: Pre-aligned probe geometry simplifies mounting and setup, reducing labor and error.

Technical Specifications

Product Applications

• Gas and Steam Turbines: Measures rotor displacement and vibration for condition monitoring.

• Centrifugal and Reciprocating Pumps: Detects shaft misalignment and imbalance.

• Compressors: Provides real-time vibration data for predictive maintenance.

• Industrial Motors: Monitors shaft runout and eccentricity.

• Generators: Protects against rotor instability and mechanical failure.

• Hydroelectric Equipment: Ensures safe operation by tracking shaft movement.

FAQ

Q1: What is the optimal probe gap for accurate measurement?

A1: The optimal gap for the 8 mm probe tip is 0.13 mm to 0.25 mm (5–10 mils) depending on the shaft material and rotation speed.

Q2: Can this probe be used with non-ferrous shafts?

A2: Yes, the probe operates on eddy current principles and can detect both ferrous and non-ferrous materials.

Q3: What is the maximum cable length without signal degradation?

A3: The 3300 XL system supports cable lengths up to 30 meters while maintaining signal fidelity.

Q4: Is this probe compatible with all 3300 XL monitors?

A4: Yes, it is fully compatible with standard 3300 XL monitors that accept 8 mm probes.

Q5: How does temperature affect the probe performance?

A5: The probe operates reliably within -40°C to +125°C. Temperature variations within this range have negligible impact on measurement accuracy.

Q6: Can the probe detect shaft vibration at high RPMs?

A6: Yes, it supports a frequency response up to 25 kHz, suitable for high-speed machinery applications.

Q7: Is the probe resistant to electromagnetic interference (EMI)?

A7: Yes, the coaxial cable design and grounding method provide excellent EMI resistance.

Q8: How does the probe output signal behave under shaft misalignment?

A8: The output voltage varies proportionally with shaft displacement, allowing the monitoring system to detect misalignment or eccentricity.

Q9: Can the probe be installed in vertical or horizontal positions?

A9: Yes, the probe’s design allows flexible mounting orientations without affecting performance.

Q10: What maintenance is required for reliable operation?

A10: Routine inspection for cleanliness and cable integrity is sufficient; no calibration is required under normal operating conditions.
