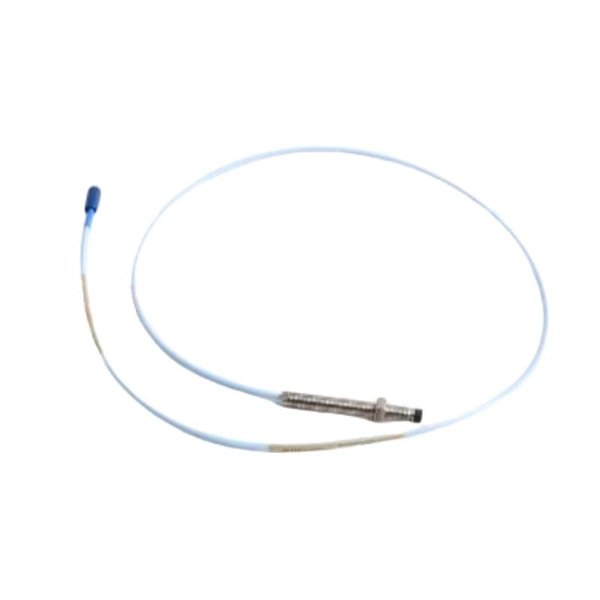

Bently Nevada 330102-60-90-10-02-05 3300 XL 8mm Proximity Probes

The Bently Nevada 330102-60-90-10-02-05 is a high-precision 3300 XL 8mm Proximity Probe, specifically designed for accurate vibration and displacement measurement in rotating machinery. This probe utilizes eddy-current sensing technology to provide real-time monitoring of shaft movement and rotor dynamics, ensuring reliable machinery protection.

With a 1-meter total cable length and a weight of 0.323 kg, this probe is ideal for installations where shorter, compact cabling is required, such as in tight equipment layouts or control panels. It integrates seamlessly with Bently Nevada 3300 XL Proximitor® sensors, providing a dependable solution for critical applications in power generation, oil & gas, petrochemical, and industrial manufacturing sectors.

The probe’s rugged construction, stainless steel body, and high-quality shielding ensure stable operation even in electrically noisy or high-vibration environments. Its design meets the API 670 machinery protection standard, making it suitable for mission-critical monitoring systems.

Product Parameters

Product Applications

The 330102-60-90-10-02-05 probe is designed for critical rotating equipment monitoring in a wide range of industries:

• Power Plants: Monitoring turbines, generators, and compressors to detect imbalance, misalignment, and shaft vibration.

• Oil & Gas: Monitoring pumps, turboexpanders, and compressors to prevent downtime and ensure safe operation.

• Petrochemical Plants: Continuous monitoring of rotating machinery to optimize process reliability and prevent unplanned shutdowns.

• Industrial Manufacturing: Gearboxes, motors, and fans are monitored for vibration anomalies that could indicate mechanical issues.

• Marine and Aerospace: Monitoring propulsion and turbine systems under high-stress conditions for early warning of potential failures.

Product Advantages

• High Precision: Accurate measurement of shaft vibration and displacement reduces false alarms and improves diagnostics.

• Compact Cable Length: The 1-meter cable allows flexible installation in tight spaces or compact machinery housings.

• Rugged Construction: Stainless steel housing ensures resistance to oil, dust, mechanical shock, and electromagnetic interference.

• Seamless Integration: Fully compatible with 3300 XL Proximitor® sensors and extension systems.

• API 670 Compliance: Meets industry-standard requirements for machinery protection systems.

• Reliable Performance: Stable operation across wide temperature and environmental ranges.

• High-Frequency Response: Capable of capturing both low-frequency and high-frequency vibration components for comprehensive monitoring.

FAQ

1. How does the probe maintain accuracy with a 1-meter cable?

   The probe uses coaxial shielding and impedance-matched cable design to preserve signal integrity and minimize attenuation.

2. What is the linear measurement range of this probe?

   It provides ±2 mm linear displacement measurement, suitable for typical rotating machinery applications.

3. Can the probe measure both static shaft position and dynamic vibration?

   Yes, it is designed to simultaneously monitor both static displacement and dynamic vibration.

4. How does the probe resist electromagnetic interference?

   Advanced shielding in both the probe and the coaxial cable minimizes susceptibility to electrical noise.

5. What is the frequency range this probe can measure?

   It accurately measures frequencies from DC to 10 kHz, covering most machinery vibration spectra.

6. Is this probe compatible with all 3300 XL Proximitor® sensors?

   Yes, it is fully compatible, enabling seamless integration into 3300 XL monitoring systems.

7. How does operating temperature affect the probe’s accuracy?

   Thermal compensation ensures measurement accuracy is maintained within the operating range of -35°C to +177°C.

8. What is the mounting method for this probe?

   The probe uses a 3/8-24 UNF threaded fitting for secure installation in proximity to the rotating shaft.

9. Can the probe detect high-frequency shaft vibration events?

   Yes, the DC to 10 kHz frequency response allows detection of high-frequency vibration anomalies.

10. Does this probe meet any industrial standards for machinery protection?

    Yes, it complies with API 670, ensuring reliability and safety in critical machinery monitoring systems.
