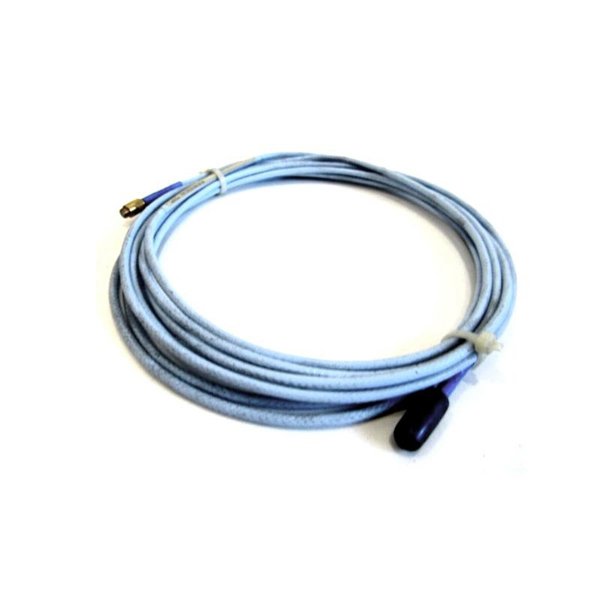

Bently Nevada 330130-080-02-00 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-080-02-00
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:8.0 meters
Weight:0.272 kg
Views:162
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-080-02-00 is an 8.0-meter extension cable designed for use with the 3300 XL 8 mm Proximity Transducer System. This system is primarily used for vibration and position measurements in rotating machinery. The extension cable connects the proximity probe to the Proximitor Sensor, ensuring accurate signal transmission over extended distances.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-080-02-00 |
| Product Type | Extension Cable |
| Cable Length | 8.0 meters |
| Weight | 0.272 kg (typical) |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Outer Conductor Resistance | 0.53 ± 0.11 Ω |
| Center Conductor Resistance | 1.76 ± 0.26 Ω |
| Connector Type | Miniature coaxial ClickLoc |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Temperature Range | -52°C to +177°C (Standard Cable) |
Applications
-
Turbomachinery monitoring
-
Fluid-film bearing vibration analysis
-
Axial and radial shaft position measurements
-
Keyphasor and rotational speed detection
-
API 670 compliant system configurations
Product Advantages
-
High Durability: Uses CableLoc design rated for 330 N (75 lbf) tensile strength.
-
Ease of Use: ClickLoc connectors require no tools and provide secure, finger-tight connections.
-
Environmental Protection: Optional connector protectors resist harsh environments.
-
Flexible Compatibility: Interchangeable with other 3300 and XL components.
-
Reliable Signal Integrity: Low resistance and stable capacitance ensure accurate data transmission.
Frequently Asked Questions (FAQ)
Q1: Is the cable compatible with non-XL 3300 systems?
A1: Yes, it is electrically and mechanically compatible with non-XL 3300 5 mm and 8 mm systems.
Q2: What is the primary use of this extension cable?
A2: It connects proximity probes to Proximitor Sensors in vibration and position monitoring systems.
Q3: What is the maximum operating temperature?
A3: +177°C for standard cable, +260°C for ETR version.
Q4: Can this cable be used in hazardous locations?
A4: Yes, it has CSA, ATEX, and IECEx approvals when configured appropriately.
Q5: Are connector protectors included?
A5: Optional—model 330130-080-02-00 includes standard cable with connector protector.
Q6: Does the cable require special tools for installation?
A6: No, the ClickLoc connectors are finger-tightened and tool-free.
Q7: What is the weight of the cable?
A7: Approximately 0.272 kg for the 8.0-meter version.
Q8: What materials are used in the connectors?
A8: Gold-plated brass or gold-plated beryllium copper.
Q9: Can the cable be armored?
A9: Yes, there are armored versions available in other configurations.
Q10: What is the minimum cable bend radius?
A10: 25.4 mm (1 inch) is the minimum bend radius.
