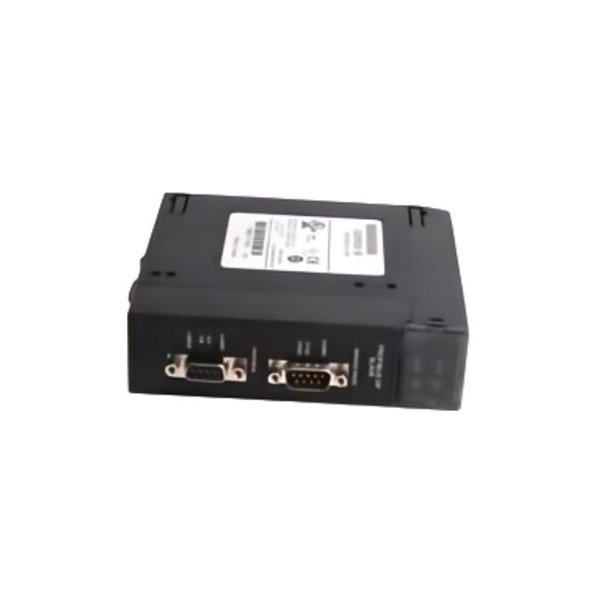

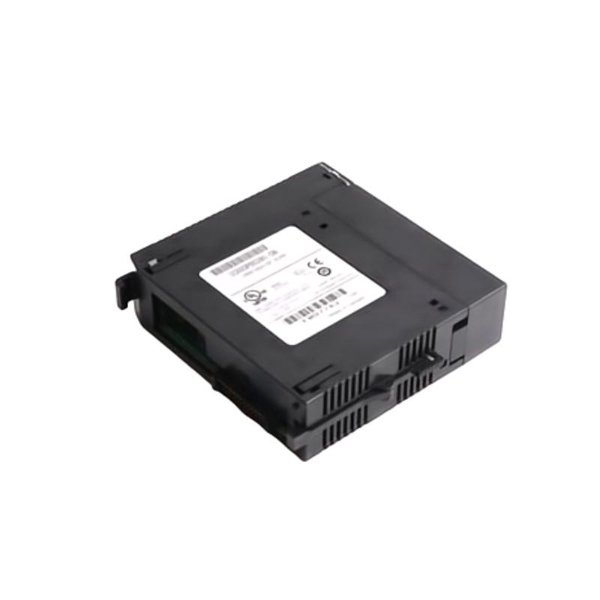

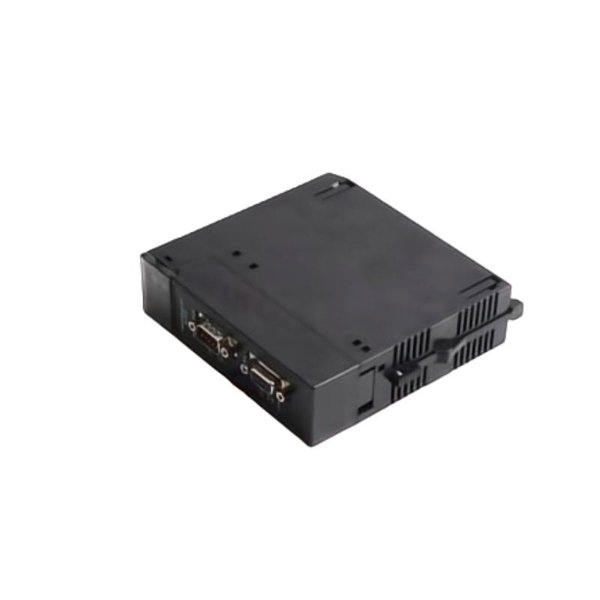

General Electric IC693PBS105 Profibus Slave Module

The GE IC693PBS105 PROFIBUS Slave Module is an advanced communication module engineered to integrate GE Series 90-30 PLCs into PROFIBUS DP-based industrial networks. PROFIBUS DP (Decentralized Peripherals) is one of the most widely used fieldbus protocols in automation, enabling fast and efficient communication between controllers and remote I/O, drives, and field devices.

The IC693PBS105 functions as a PROFIBUS DP slave device, allowing the Series 90-30 PLC to interact with PROFIBUS master devices such as DCS controllers, PACs, or higher-level PLCs from various vendors. It supports high-speed data exchange with deterministic performance, helping facilitate complex distributed control architectures in diverse industries.

With an industrial-grade design, extensive diagnostic features, and flexible configuration options, the IC693PBS105 is an ideal solution for modernizing and extending the life of Series 90-30 PLCs while seamlessly integrating them into multi-vendor PROFIBUS networks.

Product Specifications

Applications

• Fieldbus Integration: Links Series 90-30 PLCs with PROFIBUS DP networks used in distributed automation.

• Distributed I/O Systems: Allows PLCs to function as intelligent field devices in PROFIBUS architectures.

• OEM Machinery: Integrates custom-built machinery into customer’s PROFIBUS-based plant control system.

• Process Automation: Extends Series 90-30 PLC control capabilities into DCS or multi-vendor automation systems.

• Drives and Motion Control: Facilitates communication between PLCs and variable frequency drives (VFDs), servo systems, and motion controllers.

• Energy Management: Interfaces energy meters, analyzers, and intelligent relays on PROFIBUS networks.

• Retrofit Projects: Modernizes older GE PLC systems by enabling PROFIBUS DP connectivity.

• Building Automation: Links Series 90-30 PLCs to HVAC, lighting, and building management systems via PROFIBUS.

Product Advantages

• PROFIBUS DP Compliance: Fully compliant with PROFIBUS DP-V0, ensuring interoperability across a wide range of devices.

• High-speed Data Exchange: Supports data rates up to 12 Mbps with automatic baud rate detection.

• Flexible Configuration: PROFIBUS node addresses can be easily set via DIP switch or software.

• Interoperability: Allows GE Series 90-30 PLCs to communicate with Siemens, ABB, Schneider, and other PROFIBUS-based equipment.

• Compact Design: Minimal rack space required, enabling use in space-constrained cabinets.

• Isolation Protection: Optical isolation enhances reliability and protects against ground loops and electrical noise.

• Diagnostic LEDs: Provides immediate status feedback for faster troubleshooting.

• Easy Integration: Compatible with popular PROFIBUS configuration tools, reducing engineering time.

• Backplane Powered: Draws power from the PLC backplane—no additional wiring required.

• Industry-Proven: Trusted by OEMs and end users across process, discrete, and hybrid industries worldwide.

Frequently Asked Questions (FAQ)

1. What is the main function of the IC693PBS105?

   It enables GE Series 90-30 PLCs to operate as a PROFIBUS DP slave, allowing communication with a PROFIBUS DP master.

2. What is the maximum supported PROFIBUS data rate?

   It supports transmission speeds up to 12 Mbps with automatic baud rate detection.

3. What PROFIBUS version does this module support?

   It supports PROFIBUS DP-V0, the standard version for high-speed cyclic data exchange.

4. How many I/O bytes can it handle?

   The module can handle up to 244 bytes of input data and 244 bytes of output data.

5. Does it require an external power supply?

   No, it draws 5 VDC power from the Series 90-30 PLC backplane.

6. Can I configure the node address without software?

   Yes, node address can be set either through DIP switches or configuration software.

7. What tools are compatible for configuration?

   It can be configured using GE Proficy Machine Edition, Siemens S7 tools, and other compatible PROFIBUS software.

8. Is the module optically isolated?

   Yes, there is optical isolation between the PROFIBUS network and the PLC backplane.

9. Does the IC693PBS105 support redundant configurations?

   It can be used in redundant networks depending on the system configuration and the master device.

10. In what industries is this module commonly used?

    It is widely used in manufacturing, process industries, OEM equipment, utilities, and building automation.
