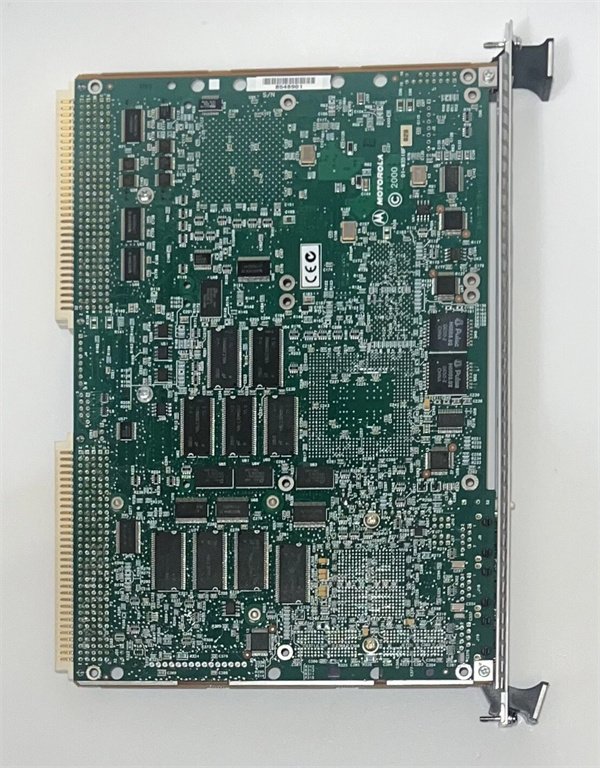

Motorola MVME-5100-0517 Mid-Tier Mixed-Signal I/O Module

The Motorola MVME-5100-0517 is a legacy industrial VMEbus mid-tier mixed-signal I/O module designed to unify high-density digital control and precision analog signal handling in a single 6U form factor—serving as an advanced successor to the digital-only Motorola MVME-510-051. Unlike its predecessor (which focuses solely on discrete signals), Motorola MVME-5100-0517 integrates 128 channels (96 digital/32 analog) to support mixed-signal workflows, eliminating the need for separate digital and analog modules in mid-scale automation systems.

As a key upgrade in Motorola’s legacy I/O lineup, Motorola MVME-5100-0517 acts as a “mixed-signal hub” for host SBCs like Motorola MVME7100-0173 or Motorola MVME-166-11A. Its ability to monitor 64 digital sensors (e.g., limit switches) and 16 analog transducers (e.g., pressure/temperature sensors) while controlling 32 digital actuators (e.g., solenoids) and 16 analog devices (e.g., variable-speed pumps) makes it ideal for legacy systems transitioning from pure discrete to mixed-signal control. In practice, Motorola MVME-5100-0517 reduces chassis slot usage by 70% compared to combining Motorola MVME-510-051 (digital) and Motorola MVME-177-003 (analog) modules—making it a cost-effective choice for automotive component testing, industrial process control, or pharmaceutical batch manufacturing.

Detailed Parameter Table

Core Advantages and Technical Highlights

Mixed-Signal Integration Reduces System Complexity: Motorola MVME-5100-0517 combines 96 digital and 32 analog channels in one 6U slot—replacing two separate modules and cutting wiring time by 50%. In a chemical processing plant, this lets the module monitor 48 “valve open/closed” digital sensors and 12 analog pH sensors (inputs) while controlling 24 digital valve solenoids and 8 analog chemical dosing pumps (outputs) via a single module. This integration also synchronizes digital and analog tasks (e.g., triggering a digital alarm when analog pressure exceeds 100 PSI) with <20µs latency—avoiding process delays that cost $1,500+ per hour in downtime.

Enhanced Analog Precision for Regulated Industries: With 16-bit analog input resolution (±0.01% accuracy) and 14-bit analog output (±0.03% accuracy), Motorola MVME-5100-0517 outperforms entry-level analog modules like Motorola MVME-177-003 (12-bit resolution). In a pharmaceutical fermentation process, Motorola MVME-5100-0517 measures dissolved oxygen (±0.05 mg/L) and pH (±0.01 pH) via analog inputs, then adjusts nutrient flow via analog outputs—ensuring batch consistency and compliance with FDA 21 CFR Part 11. Its on-board precision reference maintains calibration stability for 5+ years, reducing recalibration frequency and avoiding production halts.

Rugged Design for Extreme Operational Conditions: Motorola MVME-5100-0517’s -30°C–75°C operating range and 80 g shock resistance exceed the specs of Motorola MVME-510-051 (-25°C–70°C, 70 g shock), making it suitable for harsh environments. In a mining equipment monitoring system, Motorola MVME-5100-0517 reliably operates in dusty, vibration-prone conditions (-25°C to 65°C) while tracking 32 digital “equipment on/off” statuses and 8 analog vibration levels—where less rugged modules would fail due to thermal or mechanical stress. Its real-time temperature monitoring also provides early warning of overheating, extending the module’s lifespan to 12+ years.

Typical Application Scenarios

In an automotive powertrain testing lab, Motorola MVME-5100-0517 is paired with Motorola MVME7100-0173 to control a dynamometer system. It uses 48 digital inputs to monitor “test cell door closed” and “safety interlock” statuses, 16 analog inputs to measure engine torque (4–20mA) and coolant temperature (±10V), 24 digital outputs to activate test start/stop relays, and 8 analog outputs to adjust dynamometer load (±10V). The module’s DMA support logs 1000+ data points per second to the SBC, ensuring accurate test results for engine efficiency analysis. Motorola MVME-5100-0517’s vibration resistance handles dynamometer-induced mechanical stress, maintaining 99.98% uptime for 24/7 testing.

For a municipal wastewater treatment plant, Motorola MVME-5100-0517 manages a 10-zone filtration system with Motorola MVME-166-11A as the host SBC. It monitors 32 digital “filter clog” sensors and 12 analog turbidity sensors (inputs) while controlling 16 digital backwash pump relays and 10 analog chemical feed pumps (outputs). The module’s analog precision ensures chemical dosing is adjusted to ±0.1 L/min, reducing chemical waste by 20% vs. less accurate systems. Motorola MVME-5100-0517’s -30°C operating range withstands winter temperatures in outdoor enclosures, ensuring uninterrupted water treatment for 50,000+ residents.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing Motorola MVME-5100-0517, verify the VME chassis has a 6U slot and the host SBC supports A32/D32 addressing + DMA. Confirm the power supply provides +5V DC (±3%) and +12V DC (±5%) – use a precision multimeter to avoid voltage ripple that degrades analog accuracy. Gather tools: anti-static wristband (protects ADC/DAC circuits), torque screwdriver (0.5 N·m for 6U mounting), calibrated signal generator (for analog calibration), and shielded twisted-pair cables (22 AWG for analog, 24 AWG for digital). Route analog cables ≥30cm away from power cables to reduce EMI; label digital/analog channels separately to avoid wiring errors.

Maintenance suggestions: For daily upkeep, check Motorola MVME-5100-0517’s bank LEDs – green for active digital/analog signals, red for faults. Perform quarterly analog calibration with a NIST-traceable signal generator; adjust software coefficients if input accuracy deviates >±0.02% full-scale. Clean the module’s vents monthly with compressed air (20 PSI max) to prevent overheating, especially when using the mezzanine slot. If a digital output short-circuits, isolate the actuator, reset the module via the SBC, and confirm load current ≤300mA. Store spare Motorola MVME-5100-0517 units in anti-static bags (15°C–25°C, 40%–60% humidity) to preserve precision analog components.
