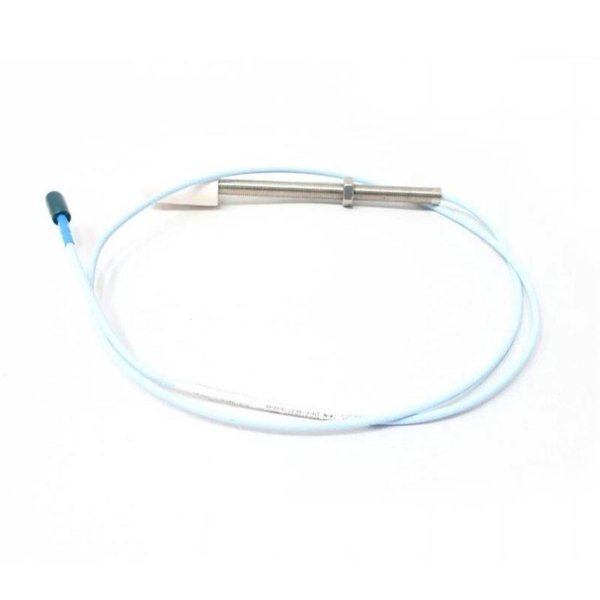

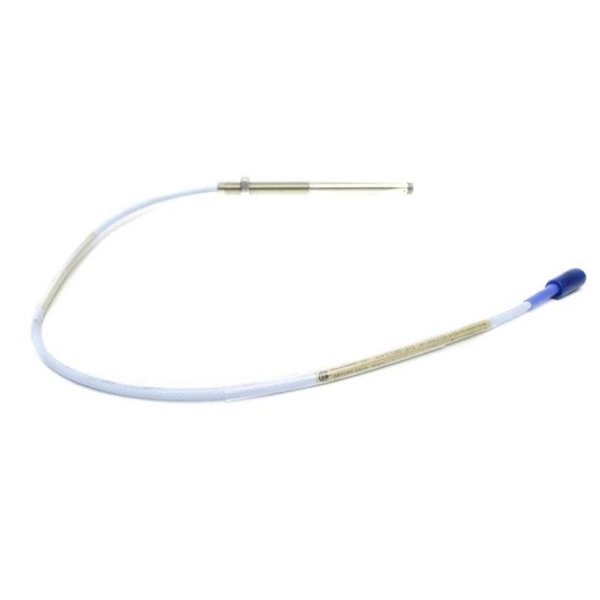

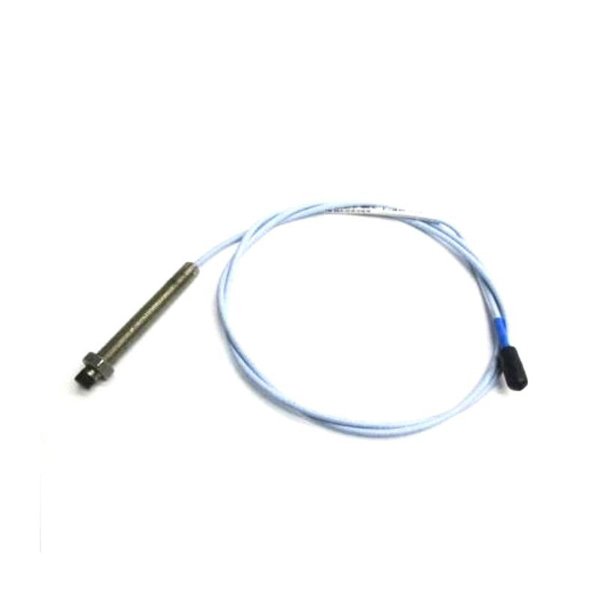

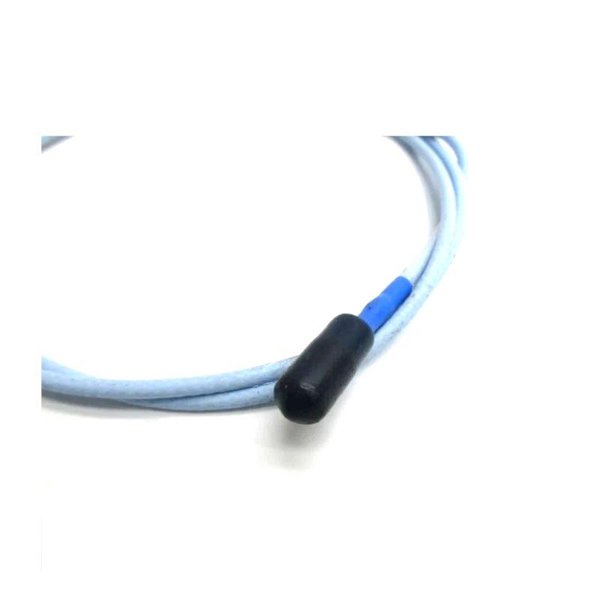

Bently Nevada 330101-00-43-15-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-43-15-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.5 meters
Weight:0.485 kg
Views:28
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-43-15-02-05 is part of the 3300 XL 8 mm Proximity Transducer System, designed to deliver accurate, reliable vibration and position measurements in rotating machinery. It includes a non-contacting probe, an extension cable, and a Proximitor sensor, suitable for applications in fluid-film bearing machines, keyphasor measurements, and speed detection.
Key Applications
-
Shaft vibration monitoring in turbines, compressors, pumps
-
Radial and axial position detection in rotating machinery
-
Keyphasor reference signals for phase analysis
-
Overspeed and tachometry monitoring (with precautions)
Product Advantages
-
API 670 Compliance: Meets mechanical and performance standards
-
Interchangeability: No need to match or calibrate components
-
Robust Design: TipLoc and CableLoc enhance mechanical integrity
-
Wide Temperature Support: Operates up to +177°C (standard), +218°C (ETR)
-
Environmental Protection: Optional FluidLoc cables and armored construction
-
EMI/RFI Resistant: Stable readings even in high-interference environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8 mm |
| Material (Tip / Case) | PPS / AISI 303 or 304 SST |
| Cable Type | 75Ω triaxial, FEP-insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Probe Length | 1.5 meters |
| System Weight | Approx. 0.485 kg |
| Operating Temp (Probe) | -52°C to +177°C (Standard) |
| Operating Temp (ETR Option) | Up to +218°C (tip), +260°C (cable) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Scale Factor | 200 mV/mil ±5% (5 m system) |
| Frequency Response | 0 – 10 kHz |
| Output Voltage Range | –1 to –17 VDC |
| Minimum Shaft Diameter | 50.8 mm (2 in) |
| Humidity Resistance | <3% change @ 93% RH (56 days) |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330101-00-43-15-02-05 probe?
A1: It is used for measuring shaft vibration and position in industrial rotating equipment.
Q2: Is this probe compatible with older Bently Nevada systems?
A2: Yes, it is backward compatible with non-XL 3300 series 5 mm and 8 mm systems.
Q3: What is the maximum temperature rating?
A3: The standard probe operates up to 177°C; the ETR variant supports up to 218°C.
Q4: Does it comply with API 670?
A4: Yes, the system meets the mechanical and performance requirements of API 670.
Q5: What is the output signal type?
A5: It provides a DC voltage output proportional to the target distance.
Q6: Is special installation tooling required?
A6: No, ClickLoc connectors are designed for tool-free, secure connections.
Q7: What is the recommended mounting orientation?
A7: It supports both forward and reverse mount configurations, based on model.
Q8: Can it be used in high humidity environments?
A8: Yes, it is tested for up to 93% RH without significant performance drift.
Q9: Is the cable armored by default?
A9: No, armor is optional. Specify the armored version when ordering if needed.
Q10: Does it require calibration for specific materials?
A10: It is factory-calibrated to AISI 4140 steel. Other materials require recalibration.
