Vibro-Meter CMC16 200-530-025-014 16-channel condition monitoring card

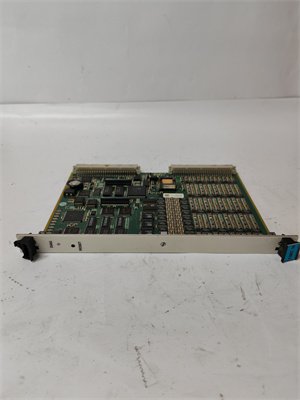

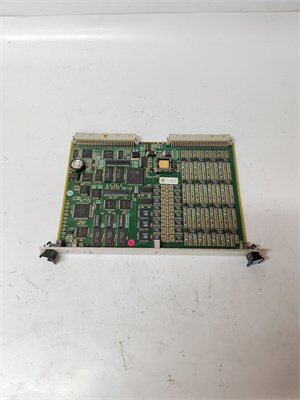

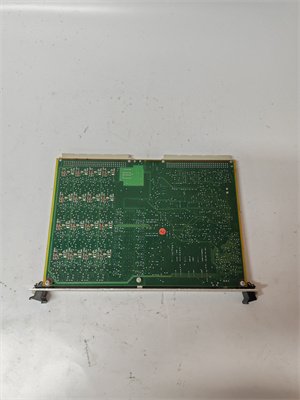

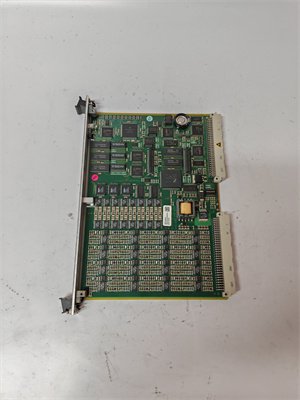

VIBRO-METER VM600 CMC16 200-530-025-014 is a high-performance 16-channel condition monitoring card designed for advanced machinery protection and state monitoring systems. Engineered to integrate seamlessly with VIBRO-METER’s VM600 series racks, this module serves as the central data acquisition and analysis hub for real-time vibration, temperature, and process parameter monitoring in industrial environments. With support for industry-standard protocols like Modbus RTU/TCP and PROFINET, the VM600 CMC16 ensures reliable communication between field devices, host software (e.g., VibroSight®), and third-party systems.

The VM600 CMC16 acts as the core component of VIBRO-METER’s VM600 machinery protection system (MPS) and state monitoring system (CMS). It interfaces with input/output modules (e.g., IOC16T, IOC4T) and protection cards (e.g., MPC4, AMC8) to process raw sensor data, execute advanced signal conditioning, and transmit critical insights to operators. Key features include:

• 16 individually configurable dynamic channels for vibration, temperature, and process parameter monitoring.
• 24-bit ADC resolution with 0.005% linearity accuracy, ensuring precise measurement of 微小振动 (e.g., 0.1 µm displacement) and process parameters.
• Real-time FFT analysis (up to 3200 lines) for early detection of machinery defects like misalignment or bearing wear.
• Programmable anti-aliasing filters and galvanic isolation to minimize electromagnetic interference (EMI) in harsh industrial environments.
• Dual communication paths (Ethernet and RS-485) for flexible integration with DCS, PLC, or SCADA systems.

The module’s VMEbus interface enables high-speed data transfer to the VM600 CPU module, while its hot-swappable design allows seamless component replacement without system downtime.

Product Parameters

Advantages and Features

1. High-Precision Data Acquisition:

   • 24-bit resolution ensures accurate measurement of 微小振动 (e.g., 0.1 µm displacement) and process parameters.
   • Low noise floor (<0.1 mV RMS) enables detection of early machinery defects.

2. Versatile Signal Conditioning:

   • Supports AC/DC voltage, current, thermocouples, and strain gauge inputs with selectable ranges (e.g., 0.1 V to 20 V FSD for AC measurements).
   • Built-in anti-aliasing filters and amplifiers reduce signal distortion.

3. Robust Environmental Performance:

   • EMI/RFI protection and galvanic isolation shield against electrical noise in industrial settings.
   • Operates in extreme temperatures (-10°C to 60°C) and withstands vibrations up to 5 g.

4. Efficient System Integration:

   • Plug-and-play compatibility with VM600 racks and MPC4 modules reduces setup time.
   • Dual communication paths: VMEbus for real-time data transfer and Ethernet for remote configuration via VibroSight® software.

Application Areas and Use Cases

Industry Applications:

• Energy: Condition monitoring of turbines, generators, and compressors in power plants.
• Oil & Gas: Real-time vibration analysis of offshore drilling equipment and pumps.
• Manufacturing: Predictive maintenance of motors, conveyor systems, and CNC machines.
• Aerospace: Structural health monitoring of aircraft engines and landing gear.

Case Study:

A power plant integrated the VM600 CMC16 into its turbine monitoring system. By analyzing vibration data from 16 accelerometers and 4 temperature sensors, the module detected early signs of misalignment in a critical turbine shaft. Real-time alerts triggered maintenance actions, preventing a potential failure that could have caused $1.5 million in downtime costs.

Competitor Comparison

Selection Recommendations

1. System Compatibility:

   • Ensure your VM600 rack supports VMEbus and the MPC4/AMC8 protection cards.
   • Verify sensor types (e.g., accelerometers, thermocouples) match the module’s input specifications.

2. Performance Requirements:

   • Choose the VM600 CMC16 for high-resolution vibration analysis in large-scale systems.
   • Opt for lower-channel modules (e.g., IOC4T) if budget or space is constrained.

3. Environmental Fit:

   • Confirm operating temperature (-10°C to 60°C) aligns with your industrial environment.
   • Use surge protectors in high-noise areas to enhance EMI resistance.

Precautions

1. Installation:

   • Use ESD-safe tools and grounding straps to prevent static damage.
   • Secure the module in the VM600 rack with screws to avoid physical damage during operation.

2. Operation:

   • Avoid exceeding input voltage/current limits to prevent hardware failure.
   • Calibrate sensors and the module annually using VIBRO-METER’s recommended procedures.

3. Maintenance:

   • Clean connector pins quarterly with isopropyl alcohol to remove oxidation.
   • Update firmware via VibroSight® to access new features and bug fixes.
